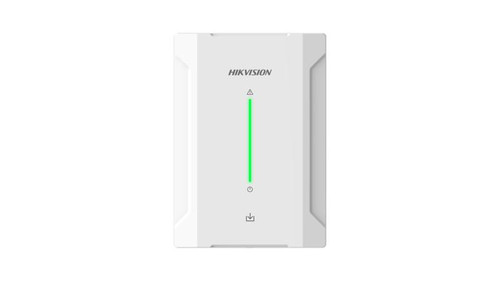

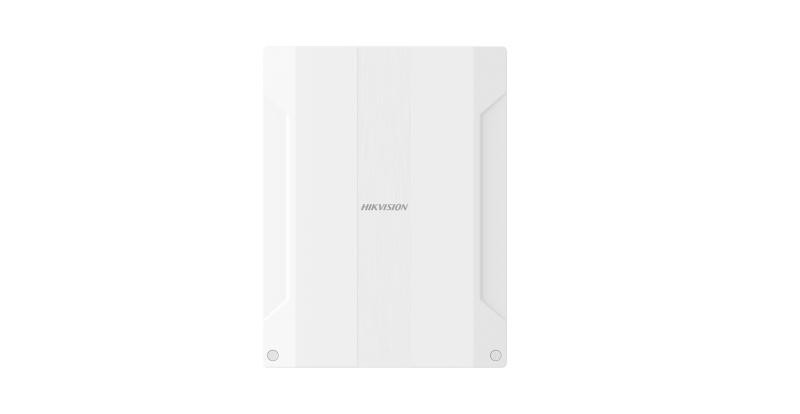

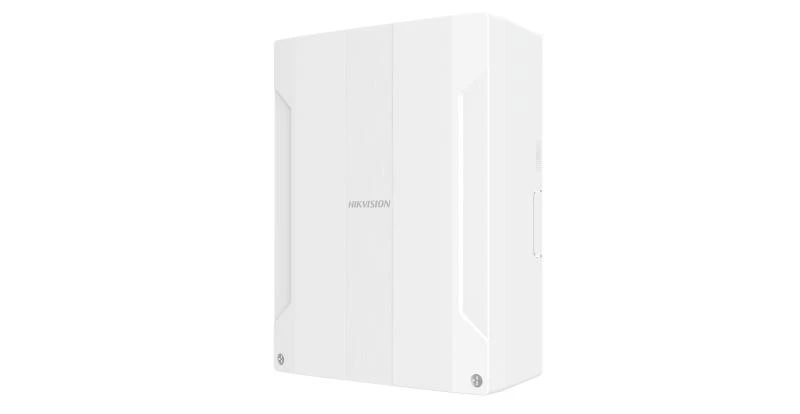

Hikvision Multi IO transmitter - DS-PM1-I16O2-WE
- 868MHz two-way wireless communication
- LED display, show the real status of device
- With 16 onboard inputs and 2 outputs, can be applied to connect wired detectors
- With two 12v power outputs, can be used to power up external wired detectors
- Large space for back up storage battery
Specification
Software features
- End of Line Resistance:
1k 2.2k 4.7k 8.2k
NO/NC
Hardware features
- Serial port: 1
- Battery port: 1, 12 VDC input
- Tamper-Proof: Front and rear
- Power switch: 1
- Alarm input: 16
- Alarm output: 2
- Power Output: 2 (12v, total1A)
Display
- Indicator: 3: Power（Green）, Fault（Amber）, Signal Strength（Green/Red）
Electrical characteristics
- Battery type:
Compatible with 12v 7 Ah
150 × 64 × 94 mm
- Power supply: 100-240VAC，30w
- Operation humidity: 10%~90%
- Operation temperature: –10 ~ 40°C
- Power consumption:
Battery Supply: Quiescent current (50mA), Max current (1500mA), Voltage (13.8V)
220V Supply: Quiescent current (45mA), Max current (300mA), Voltage (220V)
- Battery life span: Up to 36 hours
Wireless transmission
- RF frequency: 868MHz
- RF method: Two-way communication
- RF modulation2GFSK
- RF distance1100m
