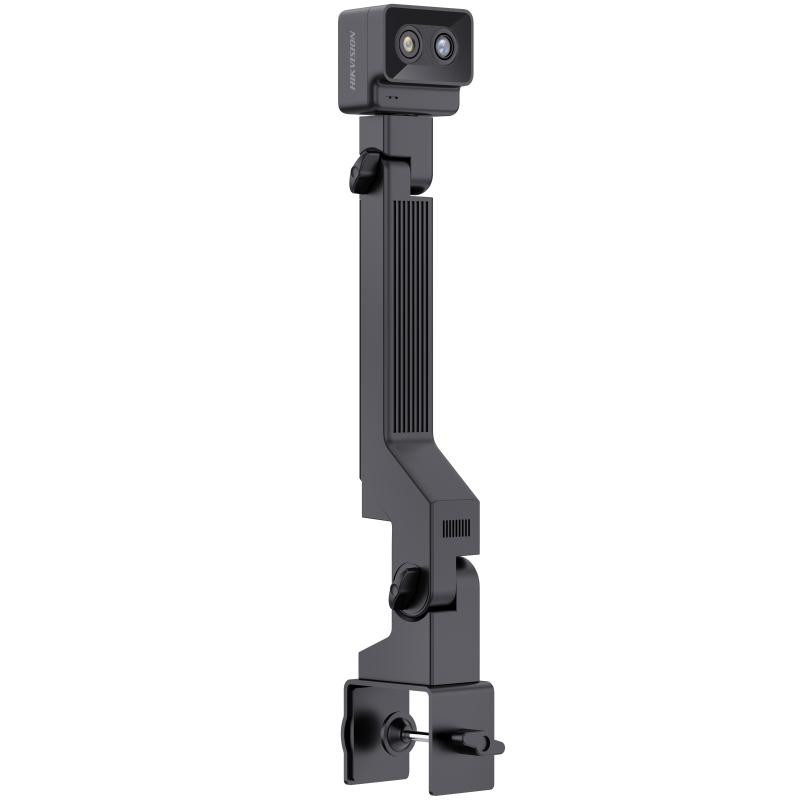

Hikvision Operations Recording Dual-Lens Camera

• High quality imaging with 8 MP and 2MP resolution
• Clear imaging against strong back light due to 120 dB true WDR technology
• Built-in microphone for real-time audio security
• Realize Wi-Fi connection with coverage up to 80 m in open areas

Specification

Camera

• Image Sensor:

Channel 1: 1/2.7" Progressive Scan CMOS,

Channel 2: 1/1.8 Progressive Scan CMOS"

• Max. Resolution: 3840 × 2160
• Min. Illumination:

Channel 1: Colour: 0.002 Lux @ (F1.0, AGC ON),

Channel 2: 0.003 Lux @(F1.2, AGC ON)

• Shutter Time: 1 s to 1/100,000 s

Lens

• Focal Length & FOV:

4/8 mm:

Channel 1: horizontal FOV 83.6°, vertical FOV 44.6°, diagonal FOV 99.1°

Channel 2: horizontal FOV 37.7°, vertical FOV 21°, diagonal FOV 43.5°

2.8/6 mm:

Channel 1: horizontal FOV 106.1°, vertical FOV 56.8°, diagonal FOV 126.5°

Channel 2: horizontal FOV 50.8°, vertical FOV 27.6°, diagonal FOV 59°

• Iris Type: Fixed
• Aperture:

Channel 1: F6.0,

Channel 2: F1.0

DORI

• DORI:

4/8 mm:

Channel 1: D: 56.6 m, O: 22.4 m, R: 11.3 m, I: 5.7 m

Channel 2: D: 239.4 m, O: 95 m, R: 47.9 m, I: 23.9 m

2.8/6 mm:

Channel 1: D: 44.1 m, O: 17.5 m, R: 8.8 m, I: 4.4 m

Channel 2: D: 183.4 m, O: 72.8 m, R: 36.7 m, I: 18.3 m

General

• Power: 12 VDC ± 25%, 0.46 A, max. 5.5 W,Ø5.5 mm coaxial power plug
• Material: Main body: Aluminium Alloy+plastic
• Dimension: 457.8 mm × 72.9 mm × 72 mm (18.02" × 2.87" × 2.83")
• Package Dimension: 547 mm × 146 mm × 109 mm (21.54" × 5.75" × 4.29")
• Approx. 555 g (1.22 lb.)
• With Package Weight: Approx. 920 g (2.03 lb.)
• Storage Conditions: -30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: mirror
