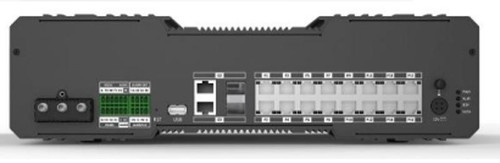

Hikvision Outdoor Management Terminal Serve - DS-TP50-08H/4T
- Supports direct connecting to 4 network cameras (single bitrate: 10M), and connecting to 4 cameras via switches. Provides passing vehicle records storage, pictures storage, videos storage, data upload, and video stream forwarding.
- Supports connecting to multiple cameras, including normal cameras, smart monitoring cameras, traffic cameras for checkpoint and intersection violation system, network speed domes, etc.
- Solid, compact, fan-free, and small size. It is applicable to roadside cabinet and pole mounted cabinet. All the interfaces are designed on the single panel, which makes it easy for construction and operation.
- Up to 4 TB HDD storage. Supports to set the quota of pictures and videos.
- Supports web operations and SDK.
DatasheetSpecification
Terminal Server
- Video: 4 × video inputs, 4 × video inputs via switches
Video
- Video Compression: H.264, H.265
Network
- Protocols: TCP/IP,HTTP,DNS,RTP,RTSP,NTP,FTP
- Security: Heartbeat, password protection, and NTP time sync.
Interface
- Ethernet Interface: 4 RJ45 100 M self-adaptive Ethernet port(s),2 RJ45 10/100/1000 M self-adaptive Ethernet port(s)
- Alarm: 1 input, 1 output
- RS-485: 1 RS-485
- RS-232: 2 RS-232
- USB: 1 USB 2.0 interface(s)
- Indicator: 4 × indicator(s) (1 × power indicator, 1 × alarm indicator, 1 × SATA indicator, 1 × ready indicator)
General
- Power: 12 VDC ± 10%, max. 30 W
- Dimension: 245 mm × 170 mm × 55 amm (9.6" × 6.7" × 2.1")
- Weight: 2 kg (4.4 lb.)
- Operating Condition: -30 °C to 70 °C (-22 °F to 158°F). Humidity: 5% to 95% (non-condensing)
