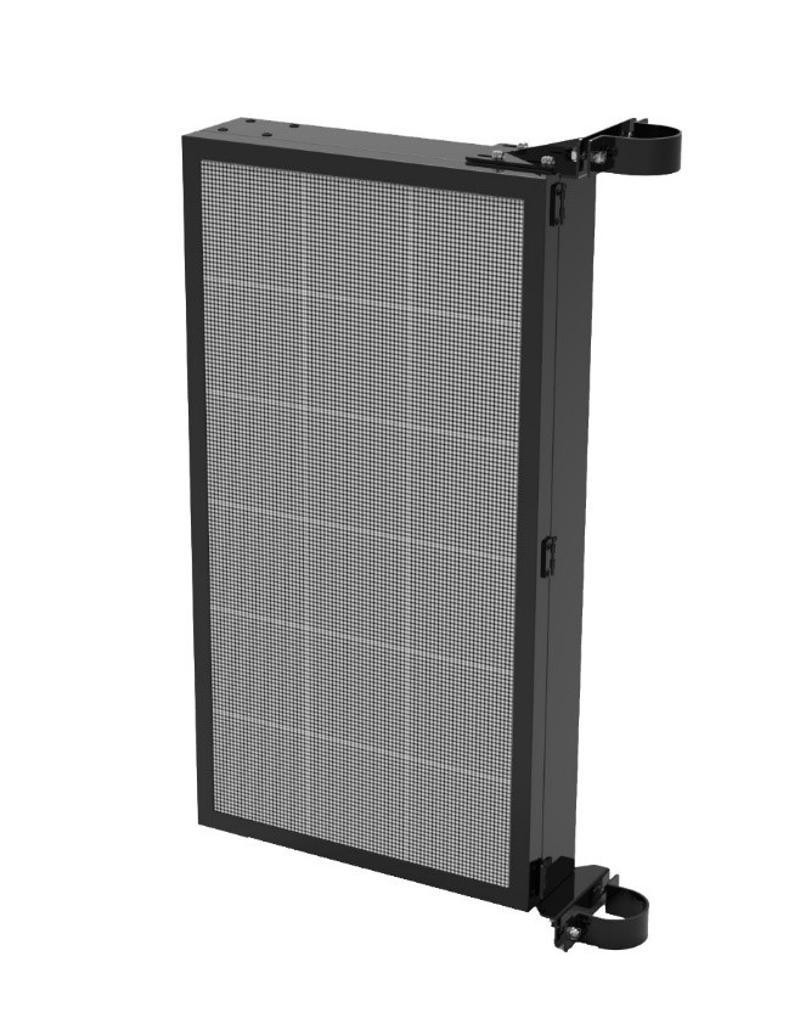

Hikvision Parking Information Guidance Screen - DS-TVL236-3-5P
- Support Seven Colors
- Display dynamic arrows, icons, and remaining parking space number
- Equipped with standard RJ45 communication mode
Specification
General
- Power Supply: 100 to 240 VAC, 50/60 Hz
- Average Consumption: 100 W
- Max. Consumption: 600 W
- Screen Dimensions (W × H): 480 × 960 mm (18.9 × 37.8 inch)
- Dimensions (with Package): 1022 × 542 × 151 mm (40.2 × 21.3 × 5.9 inch)
- Screen Weight: 40 kg (88.2 lb.)
- Weight (with Package): 60 kg (132.3 lb.)
- Working Temperature and Humidity: -30 °C to 60 °C (-22 °F to 140 °F), 20% to 90%
- Screen Border Material: Metal plate
- Lifespan: ≥ 50000 h
- Protection: IP54
Display Screen
- Pixel Pitch Category: P5
- Pixel Pitch: 5 mm
- White Balance Brightness: 5000 cd/m²
- Colour Temperature: 8500
- Viewing Angle: 120° (H)
- Brightness Uniformity: ≥ 90%
- Colour Uniformity: ≥ 90%
- Contrast Ratio: 3000 : 1
- Display Colour: Red, green, yellow
