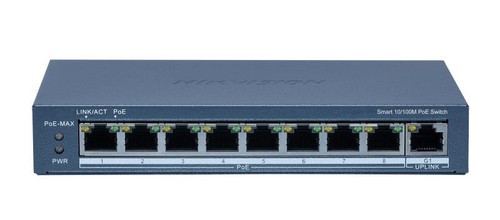

Hikvision Port Fast Ethernet Smart POE Switch - DS-3E1310P-EI 8
- 8 × 10/100 Mbps PoE ports,2 × Gigabit RJ45 port
- Total PoE Power Budget 110 W
- Support 802.1Q VLAN
- Support PoE watchdog to detect and restart the cameras that do not respond
- Support STP/RSTP loop prevention
- Support cable detection to locate failure
- Up to 300 m Long Range PoE Transmission
- 6 kV Surge Protection
DatasheetSpecifications
General
- Shell: Metal
- Net Weight: 0.54 kg (1.19 lb)
- Gross Weight: 1.08 kg (2.38 lb)
- Dimensions (W × H × D): 217.6 mm × 27.6 mm × 108.5 mm (8.57'' × 1.09'' × 4.27'')
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 54 VDC, 2.22 A
- Installation Mode: Desk-Mounted, Wall-Mounted
- Max. Power Consumption: 120 W
- Power Consumption in Idle: 10 W
- Surge Protection: 6 KV
Network Parameters
- Ports: 8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
- MAC Address Table: 4 K
- Switching Capacity;
Whole-Device Performance: 9.6 Gbps
Port Performance: 5.6 Gbps
- Packet Forwarding Rate;
Whole-Device Performance: 7.14 Mpps
Port Performance: 4.17 Mpps
- Internal Cache: 2 Mbits
PoE Power Supply
- PoE Standard: IEEE 802.3af,IEEE 802.3at
- PoE Power Pin: End-span: 1/2(-), 3/6(+)
- PoE Port: PoE: Ports 1 to 8
- Max. Port Power: 30 W
- PoE Power Budget: 110 W
