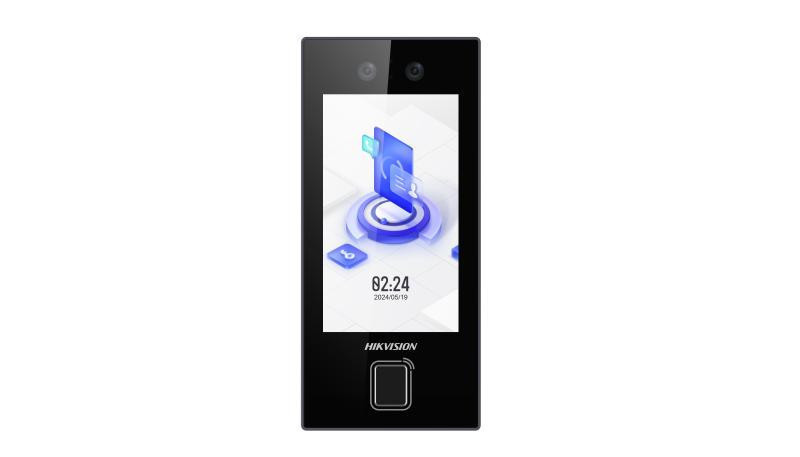

Hikvision Pro Face Access Terminal -DS-K1T670MX-WE
- Supports call function.
- 7-inch LCD touch screen,2 Mega pixel wide-angle lens.
- Recognition distance: 0.3 to 3 m.
- Face recognition duration ＜ 0.2 s/User.
- Face recognition accuracy rate ≥ 99%.
- Supports M1 card.
- Face mask detection.
- 6000 face capacity, 50,000 card capacity, and 150,000 event capacity.
- Supports ISAPI, ISUP 5.0, TCP/IP (IPv4 and IPv6).
- Connects with secure door control unit to realize 2 doors control. Using key fobs to control the 2 doors is available.
- Supports single person and multiple people (up to 5 people) recognition.
Specification
System
- Operation system: Linux
Display
- Resolution: 600 × 1024
- Size: 7-inch
- Type: Touch screen
Video
- Pixel: 2 MP
- Lens: Dual-lens
- WDR: Support
- Video standard: PAL (Default)/NTSC
Network
- Wireless Network: 868 MHz
Wired network: Support 10/100/1000 Mbps self-adaptive
Interface
- Alarm input: 2
- Alarm output: 1
- USB: 1 Type-A (For Module)
- Network interface: 1
- RS-485: 1
- Wiegand: 1
- Lock output: 1
- Exit button: 1
- Door contact input: 1
- TAMPER: 1
Capacity
- User capacity: 6000
- Card capacity: 50,000
- Face capacity: 6000
- Event capacity: 150,000
Authentication
- Face recognition accuracy rate: ≥ 99%
- Card type: M1 card
- Card reading distance: 0 to 5 cm
- Card reading duration: ＜ 1 s
- Face recognition duration: ＜ 0.2 s per person
- Face recognition distance: 0.3 to 3 m
General
- Power supply: 12 VDC/2 A
- Button: Press the button to call
- Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity: 10 to 90% (no condensing)
- Power consumption: ≤ 10 W
- Protective level: IP65
- Dimensions: 110.5 mm × 209.2 mm × 24 mm (4.35" × 8.24" × 0.94")
- Anti-corrosion: 48 H (about 2 years)
- Language: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean
- Gross Weight：1.06 kg (2.34 lb)
Net Weight：0.57 kg (1.26 lb)
