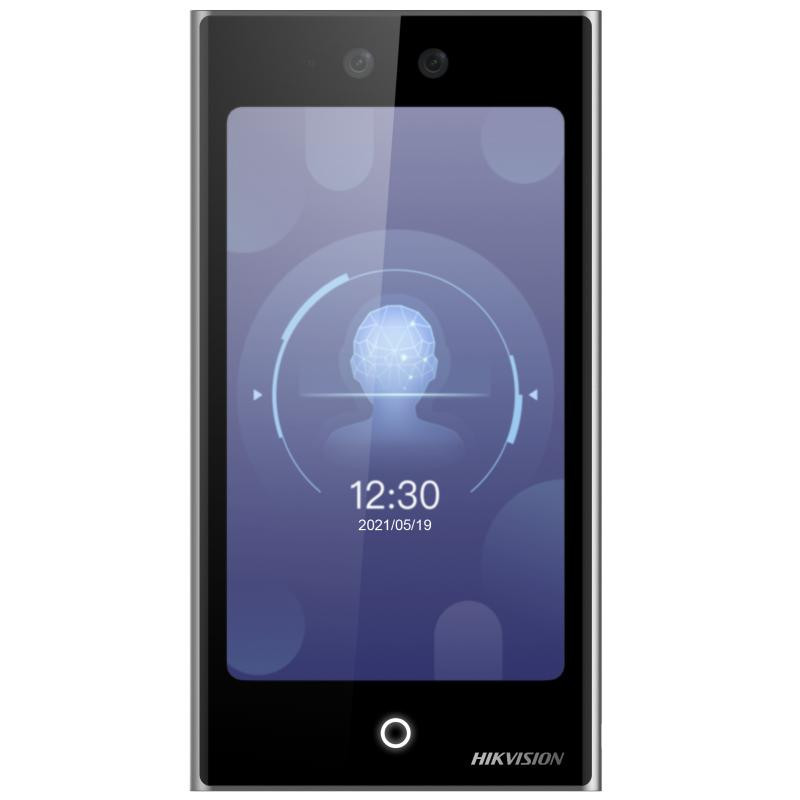

Hikvision Pro Face Access Terminal - DS-K1T673DWX
- 7-inch LCD touch screen,2 Mega pixel wide-angle lens
- Recognition distance: 0.3 to 3 m
- Face recognition duration ＜ 0.2 s/User
- Face recognition accuracy rate ≥ 99%
- Built-in M1 card, Felica card, and DESfire card reading module (Presents card on the screen to authenticate)
- Face mask detection
- 10,000 face capacity, 10,000 fingerprint capacity (With fingerprint module), 50,000 card capacity, and 150,000 event capacity
- Supports ISAPI, ISUP 5.0, TCP/IP (IPv4 and IPv6)
- Supports single person and multiple people (Up to 5 people) recognition
Specification
Display
- Screen size: 7 inch
- Operation method: Capacitive touch screen
- Type: IPS
Video
- Lens: 2
- Resolution: 2 MP
- FOV: HFOV = 75.5°; VFOV = 41.5°; DFOV = 87°
Audio
- Audio quality: Built-in omnidirectional microphone
Network
- Wired network: Support
- Wi-Fi: Support, 2.4 G, 802.11b/g/n
Interface
- Network interface: 1 RJ-45, 10/100/1000 M self-adaptive
- Lock control: 1
- Exit button: 1
- Door contact input: 1
- Alarm input: 2
- Alarm output: 1
- TAMPER: 1
- RS-485: 1 RS-485 (Half duplex, HIKVISION)
- Wiegand: 1 Wiegand(Hik 26bit,Hik 34bit)
- USB: 1 (For Module)
- Audio output interface: 1 (3.5 mm)
Authentication
- Card type: M1 card;Felica card;DESfire card
General
- Power supply: 12 VDC to 24 VDC, 2 A
- Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity: 0 to 90% (no condensing)
- Dimensions: 110.5 mm × 209.2 mm × 24 mm (4.35" × 8.24" × 0.94")
- Gross Weight：1.06 kg (2.34 lb)
Net Weight：0.57 kg (1.26 lb)
- Language: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean, Traditional Chinese, French and Turkish
