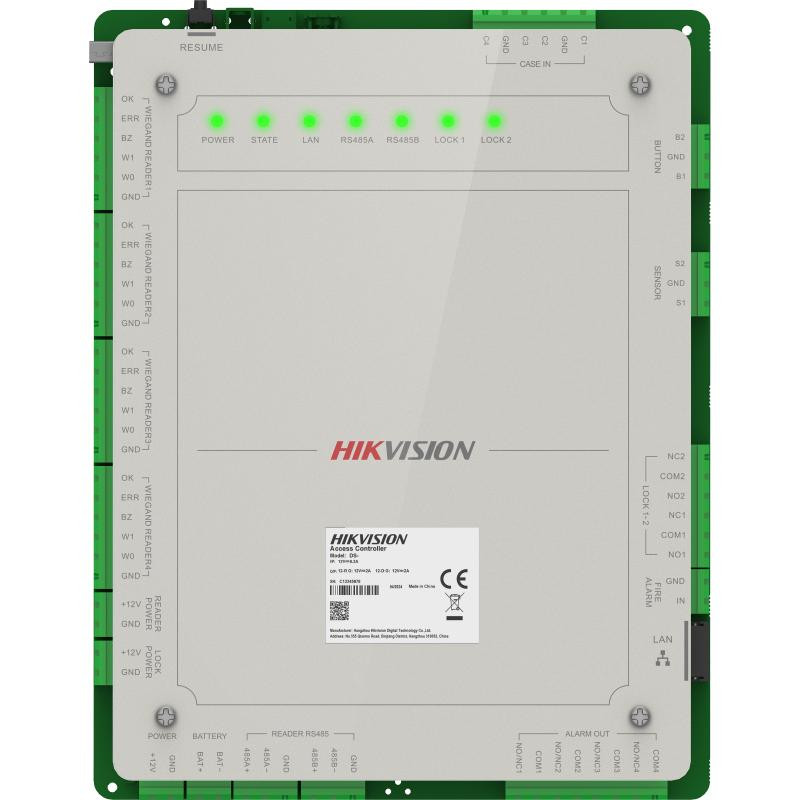

Hikvision Pro Series Access Contoller - Supports 2-Door Control - DS-K2622X(P)
- Supports IPv4, IPv6 and DHCP
- Supports AES256, RSA2048, and TLS 1.2 encryption protocols
- Web configuration management. All configurations can be realized via web without software application
- Supports professional access control applications such as multi-door interlocking and anti-passback
- Supports backup battery access
- Supports OSDP, and a variety of wiegend formats to connect to third-party card readers
- It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection
- Supports 2-door control
DATASHEET
Specification
Network
- Wired network: 10/100 Mbps self adaptive
Interface
- Network interface: 1
- Lock control: 2
- Exit button: 2
- Door contact input: 2
- Alarm input: 4
- Alarm output: 4
- TAMPER: 1
- RS-485: 2 for card reader (1 for communication, 1 for redundancy; each interface can connect up to 4 readers)
- Wiegand: 4, standard 26/34 input, supports custom Wiegand settings
- Fire interface: Support
Capacity
- Linked door capacity: 2
- Linked card reader capacity: 4 RS-485 card readers (OSDP protocol) and 4 Wiegand card readers
General
- Power supply: 12 ± 15% VDC
- Battery: Charge and discharge
- Power consumption: ≤ 72 W
- Working temperature: -10 °C to 55 °C (14 °F to 131 ° F)
- Working humidity: 10% to 90% (no condensing)
- Installation: Wall mounting
- Language: English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian and Turkish
Function
- Configuration via Web browser: Support
- Multi-factor authentication: Support
- Anti-passback: Support
- Multi-door interlocking: Support
