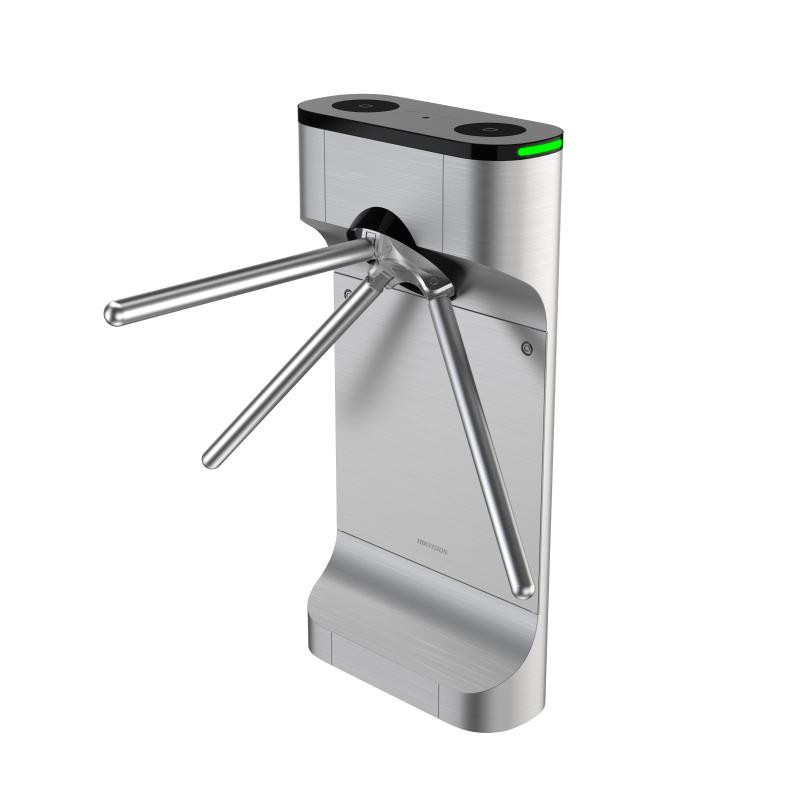

Hikvision Pro Tripod Turnstile - DS-K3G411BLX
- Barrier open/closed, free accessing, forbidden mode are selectable.
- LED indicates the entrance/exit and passing status.
- Fire alarm passing: when the fire alarm is triggered, the barrier will be dropped automatically for emergency evacuation.
- Easy integration of any 3rd access control system via relay output
System
- Motor: /
- MCBF: ≥ 3 million times
Interface
- Exit button: 2
- Fire alarm input: 1
Hardware
- Access controller: Not supplied
Function
- Audio prompt: Not support
- Keypad configuration: Support
General
- Throughput:
30 to 60 persons per minute
The actual throughput is affected by the person passing rate and passing method.
- Lane width: 550 mm (21.65")
- Barrier material: 1.2 mm stainless pipe
- Pedestal material: SUS304 stainless steel 1.2 mm
- Power consumption:
Standby: 15 W
Working: 30 W
Peak: 40 W
- Working temperature: -20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity: 0% to 95% (No condensing)
- Protective level: /
- Dimensions:
Without package: 502 mm × 202 mm × 1010 mm (19.8" × 8.0\" × 40.0\")
With package: 700 mm × 430 mm × 1140 mm (27.56 × 16.93\" × 44.88\")"
- Net: 26.65 kg (58.75 lb) Gross: 32.75 kg (72.2 lb)
- Approval: CE/CB/RoHS/REACH/WEEE
- Power supply method: Power supply: 100 to 120 VAC~ / 200 to 240 VAC~, 50/60 Hz,
Configuration
- Application environment: Indoor
