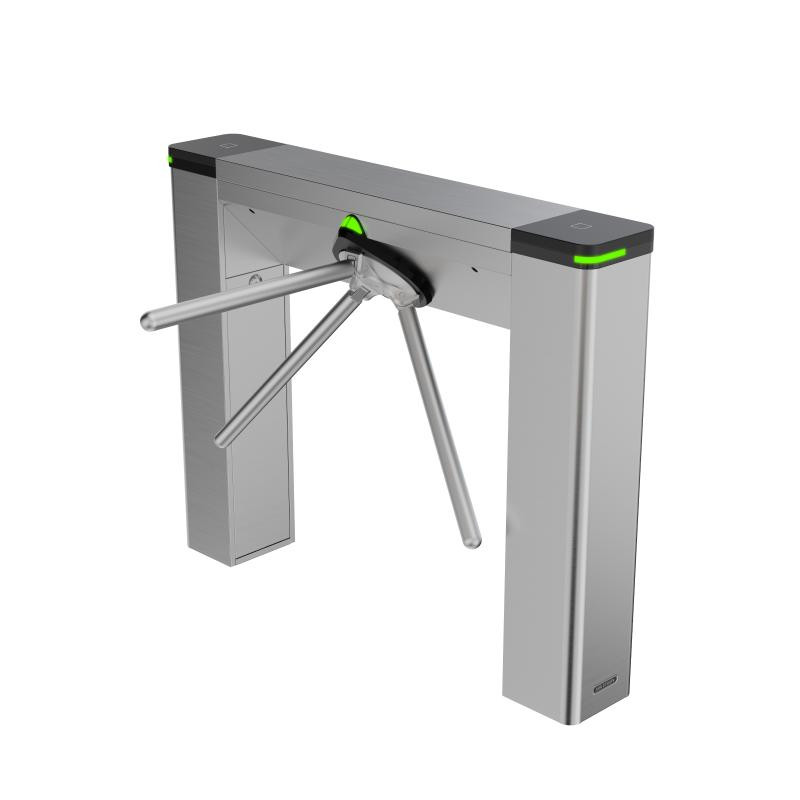

Hikvision Pro Tripod Turnstile - DS-K3G501BLX
- Barrier open/closed, free accessing, forbidden mode are selectable.
- LED indicates the entrance/exit and passing status.
- Fire alarm passing: when the fire alarm is triggered, the barrier will be dropped automatically for emergency evacuation.
- Easy integration of any 3rd access control system via relay output.
System
- Motor: /
- MCBF: ≥ 3 million times
Network
- Wired network: /
Interface
- Exit button: x 2
- Fire alarm input: 1
Hardware
- Access controller: Not supplied
Function
- Audio prompt: Not support
- Keypad configuration: Support
General
- Throughput:
30 to 60 persons per minute
The actual throughput is affected by the person passing rate and passing method.
- Lane width: 550 mm (21.65")
- Barrier material: 1.2 mm stainless pipe
- Pedestal material: SUS304 stainless steel 1.5 mm
- Power consumption:
Standby: 15 W
Working: 30 W
Peak: 40 W
- Working temperature: -20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity: 0% to 95% (No condensing)
- Protective level: IPX4
- Dimensions:
Without package: 232 mm × 960 mm × 1208 mm (9.1" × 37.8\" × 47.6\")
With package: 410 mm × 1180 mm × 1350 mm (16.1 × 46.5\" × 53.1\")"
- Without package: 41.78 kg (92.11 lb)With package：51.45 kg(113.43lb)
- Approval: CE/CB/RoHS/REACH/WEEE
- Power supply method: Power supply: 100 to 120 VAC~ / 200 to 240 VAC~, 50/60 Hz
