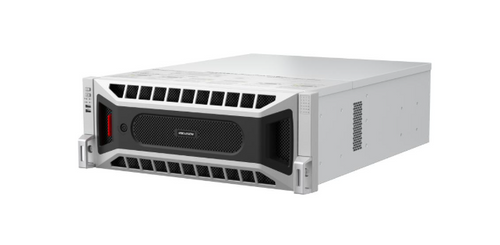

Hikvision S Series NVR with AcuSense - DS-96128NXI-S16

• Up to 32×1080p decoding capacity
• H.265+/H.265/H.264+/H.264 video formats
• Up to 128-ch IP cameras can be connected
• Intelligent analytics supports facial recognition, perimeter protection, video structuralization, AcuSearch
• Up to 8-ch IP speakers can be connected
• Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
• HDMI video output at up to 8K resolution

DATASHEET

Intelligent Analytics

• AI by NVR: Facial recognition, perimeter protection, video structuralization
• AI by Camera: Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA

Facial Recognition

• Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
• Face Picture Library: Up to 64 face picture libraries, up to 300,000 face pictures in list library (each picture ≤ 4 MB, total capacity ≤ 10 GB)
• Face Picture Comparison (Captured from Camera):16-ch Comparison speed: 24 pictures per second
• Facial Detection and Analytics Performance:

• Simultaneous mode: 8-ch, up to 2 MP
• independent mode: 4-ch, up to 2 MP.

AcuSearch

• By NVR: Up to 32-ch
• By Camera: All channels, up to 345,600 targets per day. Note: The camera should enable AcuSearch function.

Perimeter Protection

• By NVR:

• Simultaneous mode: 8-ch, up to 2 MP
• independent mode: 4-ch, up to 2 MP.

• By Camera: All channels

Video Structuralization

• Structured Analysis

• Simultaneous mode: 8-ch, up to 2 MP
• independent mode: 4-ch, up to 2 MP.

• Face Picture Library: Up to 64 face picture libraries, up to 300,000 face pictures in list library (each picture ≤ 4 MB, total capacity ≤ 10 GB)
• Face Picture Comparison: 16-ch; Comparison speed: 24 pictures per second

Video and Audio

• IP Video Input: 128-ch Up to 32 MP resolution
• Incoming Bandwidth:1280 Mbps
• Outgoing Bandwidth:1024 Mbps
• Incoming Bandwidth (RAID Mode): 640 Mbps
• Outgoing Bandwidth (RAID mode): 512 Mbps
• HDMI 1 Output: 4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz
• HDMI 2 Output: 4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz
• HDMI 3 Output: 8K (7680 × 4320)/30 Hz, 4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz
• HDMI 4 Output: 1080P (1920 × 1080)/60 Hz
• VGA 1 Output: 1080P (1920 × 1080)/60 Hz
• VGA 2 Output: 1080P (1920 × 1080)/60 Hz
• Video Output: Mode;

• Mode 1 (default output mode): simultaneous output with 1080p resolution;
• Mode 2 (simultaneous output): HDMI 1, VGA 1, HDMI 2, VGA 2, HDMI 3, and HDMI 4 provide simultaneous output, the maximum resolution for VGA 1/VGA 2/HDMI 4 is 1080p, the maximum resolution for HDMI 1/HDMI 2/HDMI 3 is 4K;
• Mode 3 (independent output and 8K HDMI 3 output resolution): HDMI 1/VGA 1/HDMI 2/VGA 2, HDMI 3, and HDMI 4 provide independent output respectively. The maximum resolution is 8K + 4K + 1080p;
• Mode 4 (independent output and HDMI 3 output resolution ≤ 4K): HDMI 1/VGA 1, HDMI 2/VGA 2, HDMI 3, and HDMI 4 provide independent output respectively. The maximum resolution is 8K × 4K + 1080p.

• HDMI Input:1-ch
• HDMI Loopback:1-ch (matching the HDMI input)
• Audio Output: 2-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

• Decoding Format: H.265/H.265+/H.264/H.264+
• Decoding Capability: 2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
• Synchronous Playback: 16-ch
• Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

Network

• Remote Connection: 256
• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (version 2.2), OTAP
• API: ONVIF (profile S/G); SDK; ISAPI
• Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
• Network Interface: 4, RJ-45 10/100/1000/2500 Mbps self-adaptive Ethernet interface
• Camera Access Protocol: ONVIF (version 2.5), RTSP

RAID

• RAID Type: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10

Auxiliary Interface

• SATA: 16 SATA interfaces; 3.5-inch HDD
• eSATA: 1 eSATA interface
• Capacity: Up to 20 TB capacity for each HDD
• Serial Interface: 1 RS-232, 2 RS-485 (half-duplex)
• USB Interface: Front panel: 2 × USB 2.0; Rear panel: 4 × USB 3.0
• Alarm In/Out: 32/16

General

• GUI Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz, Brazilian Portuguese, Indonesian
• Power Supply: 100 to 240 VAC, 50 to 60 Hz, redundant power supply
• Consumption: ≤ 100 W (without HDD)
• Working Temperature: -10 to 55°C (14 to 131° F)
• Working Humidity: 10 to 90%
• Dimension (W × D × H): 442 mm × 497 mm × 146 mm (17.4 × 19.5 × 5.7 inch)
• Weight: ≤ 12 kg (without HDD, 28.7 lb.)

Certification

• Obtained Certification: CE, IC, CB, Rohs, Reach, WEEE, RCM, UKCA, LOA
• CE;

•       EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201
•       9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
