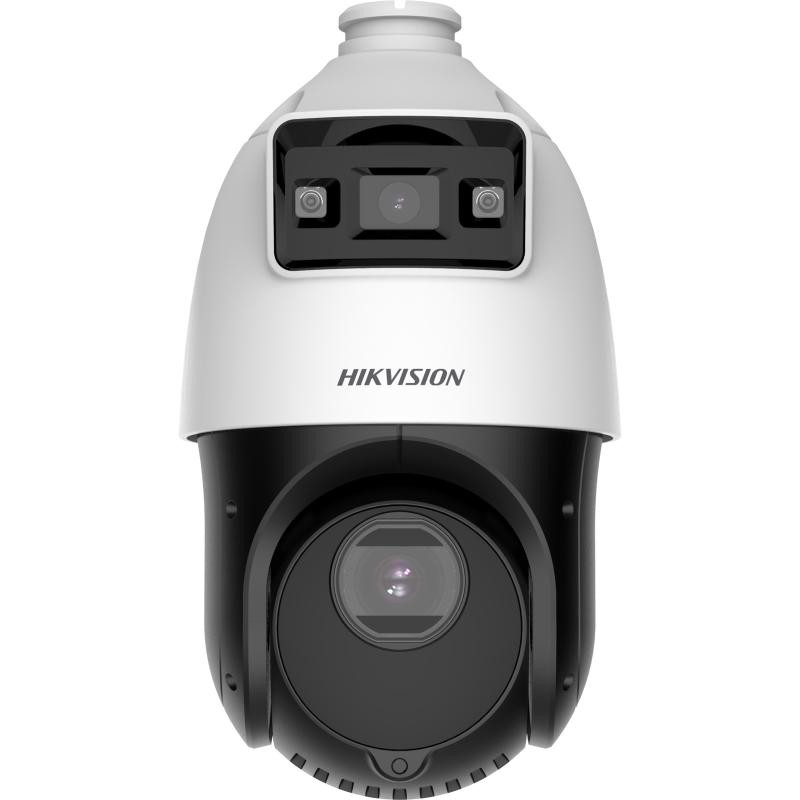

Hikvision TandemVu 4+4MP 25X ColorVu & IR Acusense Network Speed Dome - DS-2SE4C425MWG-E(14F0)

• Captures a large area and great details at the same time
• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
• Secures an expansive area with 25× optical zoom and 16× digital zoom
• Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
• Expansive night view with up to 100 m IR distance & 30 m white light
• Supports 12V DC & PoE+
• Focuses on human and vehicle targets classification based on deep learning

Datasheet

Specifications

Camera

• Image Sensor: [Bullet channel]: 1/3" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
• Max. Resolution: [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
• Min. Illumination;

[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;

[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR

• Shutter Speed: 1 s to 1/30,000 s
• Day & Night: ICR
• Zoom: [PTZ channel] 25 × optical, 16 × digital
• Slow Shutter: yes

Lens

• Focal Length: [Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical
• FOV;

[Bullet channel]: Horizontal field of view: 96.1°, Vertical field of view: 52.1°，Diagonal field of view: 113.3°;

[PTZ channel]:

Horizontal field of view: 55° to 4° (wide-tele),

Vertical field of view: 33° to 2.2° (wide-tele),

Diagonal field of view: 61.5° to 4.6° (wide-tele)

• Focus: semi-auto||manual||auto
• Aperture: [Bullet channel]: F1.0; [PTZ channel]: F1.6
• Zoom Speed: [PTZ channel]: approx. 3.6 s

Illuminator

• Supplement Light Type: [PTZ channel]: IR; [Bullet channel]: White Light
• Supplement Light Range: [PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m
• Smart Supplement Light: Yes

PTZ

• Movement Range (Pan): 360°
• Movement Range (Tilt): -15° to 90° (auto flip)
• Pan Speed: Pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
• Tilt Speed: Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
• Proportional Pan: Yes
• Presets: 300
• Preset Freezing: Yes
• Patrol Scan: 8 patrols, up to 32 presets for each patrol
• Pattern Scan: 4 pattern scans
• Park Action: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
• 3D Positioning: Yes
• PTZ Status Display: Yes
• Scheduled Task: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
• Power-off Memory: Yes

General

• Power: 12VDC, PoE+
• Dimension: Ø 166 mm × 375 mm (Ø 6.5" × 14.7")
• Weight: Approx. 2.4 kg (13.2 lb.)
• Material: ADC12
• Operating Condition: -30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH
• General Function: mirror,watermark,IP address filter,password protection
• Demist: Demist by heating the glass
• Power Consumption and Current: Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light
