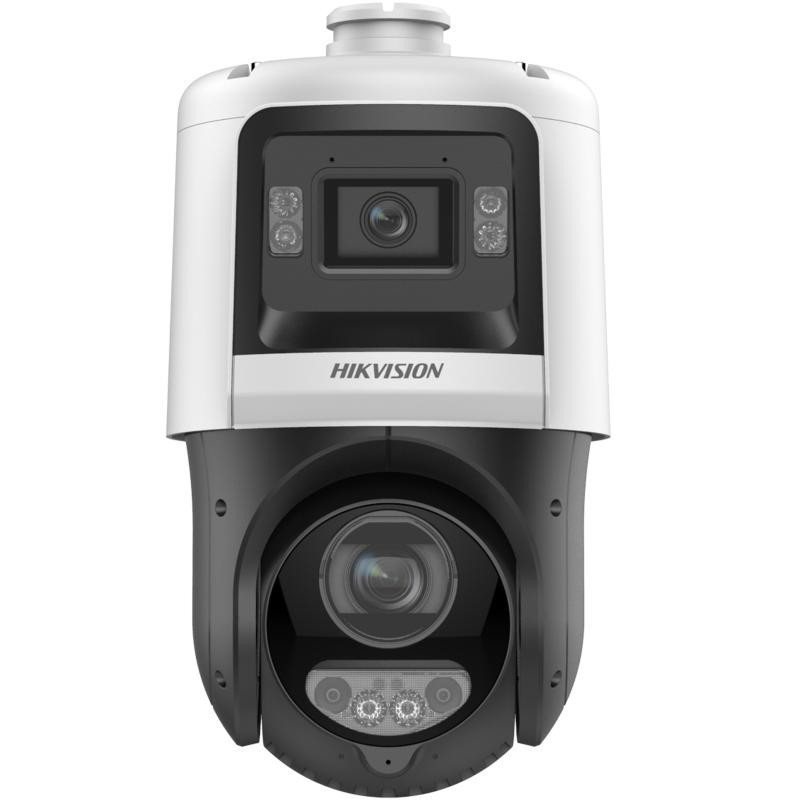

Hikvision TandemVu 4+4MP 25X ColorVu & IR Acusense Network Speed Dome with R/B Strobe light - DS-2SE4C425MWG-E/RB/14(F0)

• Captures a large area and great details at the same time
• High quality imaging with 4 MP resolution
• Focuses on human and vehicle targets classification based on deep learning
• Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
• Secures an expansive area with 25 × optical zoom and 16 × digital zoom
• Expansive night view with up to 100 m IR distance & 30 m white light
• Build-in speaker and dual-microphone for real-time high quality audio security
• Active red and blue strobe light and audio alarm to warn intruders off
• Supports 12 VDC & PoE+

Datasheet

Specifications

Camera

• Image Sensor: [Bullet channel] 1/2.8" Progressive Scan CMOS, [PTZ channel] 1/2.8" Progressive Scan CMOS
• Max. Resolution: [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
• Min. Illumination;

[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;

[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR

• Shutter Speed: 1 s to 1/30,000 s
• Day & Night: ICR
• Zoom: [PTZ channel] 25 × optical, 16 × digital
• Slow Shutter: yes

Lens

• Focal Length: [Bullet channel] 2.8 mm, [PTZ channel] 5 to 125 mm
• FOV: [Bullet channel] horizontal field of view: 96.1°, vertical field of view: 52.1°, diagonal field of view: 113.3°, [PTZ channel] horizontal field of view: 55° to 2.4°, vertical field of view: 33° to 1.4°, diagonal field of view: 61.5° to 2.8°
• Focus: auto,manual,semi-auto
• Aperture: [Bullet channel]: F1.0; [PTZ channel]: F1.6
• Zoom Speed: [PTZ channel]: approx. 2.3 s

Illuminator

• Supplement Light Type: [PTZ channel]: IR; [Bullet channel]: White Light
• Supplement Light Range: [PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m
• Smart Supplement Light: Yes

PTZ

• Movement Range (Pan): 360° endless
• Movement Range (Tilt): [Bullet channel] 9° to 21° (manually adjust), [PTZ channel] -15° to 90°
• Pan Speed: Pan speed: configurable from 0.1° to 80°/s, preset speed: 80°/s
• Tilt Speed: Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
• Proportional Pan: yes
• Presets: 300
• Preset Freezing: yes
• Patrol Scan: 8 patrols, up to 32 presets for each patrol
• Pattern Scan: 4 pattern scans
• Park Action: preset,frame scan,tilt scan,patrol scan,random scan,auto scan,pattern scan,panorama scan
• 3D Positioning: yes
• PTZ Status Display: yes
• Scheduled Task: Preset,pattern scan,patrol scan,tilt scan,auto scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
• Power-off Memory: yes

General

• Power: 12 VDC , 3.33 A PoE: IEEE 802.3at, 42.5 to 57.2 V, 0.6 A

• Dimension: Ø166 mm × 294.8 mm (Ø6.5" × 11.6")
• Weight: Approx. 3.0 kg (16.5 lb.)
• Material: ADC12
• Operating Condition: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing)
• General Function: mirror, password protection, watermark, IP address filter
• Demist: Demist by heating the glass
