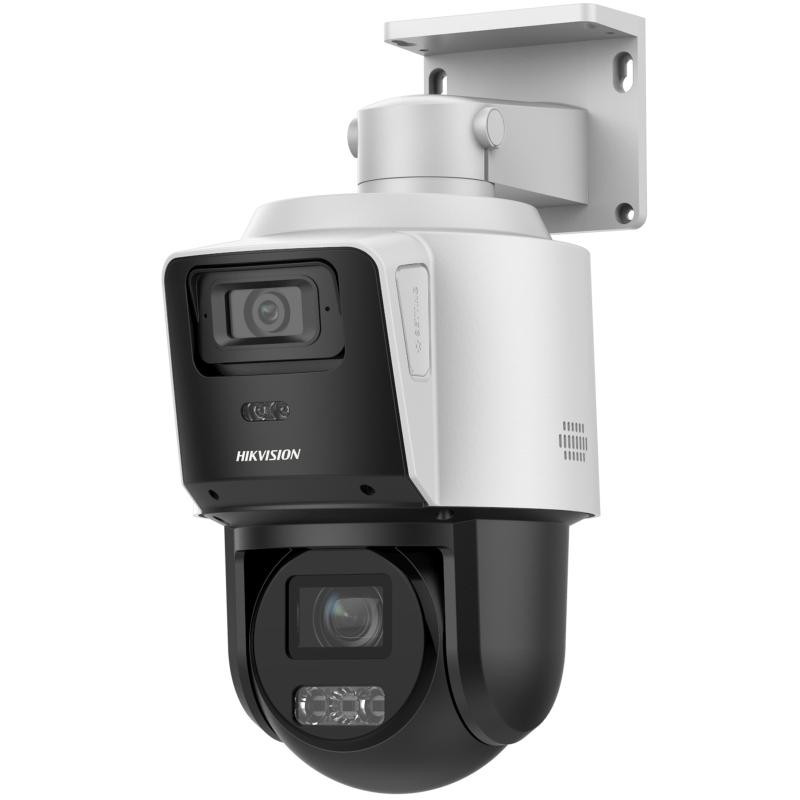

Hikvision TandemVu 4MP+4MP 10X POE PTZ Network Camera - DS-2SE3C410MWG-E/14(2.8mm)

• Captures a large area and great details at the same time
• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Secures an expansive area with 10× optical zoom and 16× digital zoom
• Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
• Supports 12V DC & PoE+
• Support Human and Vehicle Detection

Datasheet

Specifications

Camera

• Image Sensor: [Bullet channel]: 1/2.8" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
• Min. Illumination;

[Bullet channel]: Color: 0.01 Lux @ (F1.6, AGC ON)，B/W: 0.005 Lux @ (F1.6，AGC ON), 0 Lux with IR;

[PTZ channel]: Color: 0.01 Lux @ (F1.86, AGC ON), B/W: 0.005Lux @ (F1.86, AGC ON), 0 Lux with IR

• Shutter Speed: 1 s to 1/30,000 s
• Slow Shutter: yes
• Day & Night: ICR
• Zoom: [PTZ channel] 10 × optical, 16 × digital
• Max. Resolution: [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440

Lens

• Focus: auto,manual,semi-auto
• Focal Length: [Bullet channel]: 2.8 mm; [PTZ channel]: 5.76 to 57.6 mm, 10 × optical
• Zoom Speed: [PTZ channel]: approx. 3.3 s
• FOV: [Bullet channel] horizontal field of view: 104.9°, vertical field of view: 57.9°, diagonal field of view: 119.8°, [PTZ channel] horizontal field of view: 50° to 7.5°, vertical field of view: 31° to 4°, diagonal field of view: 58.8° to 8.5°
• Aperture: [Bullet channel]: F1.6; [PTZ channel]: F1.86 to F2.65

Illuminator

• Supplement Light Type: [Bullet channel] Hybrid (IR and White Light), [PTZ channel] IR
• Smart Supplement Light: Yes
• Supplement Light Range;

[PTZ channel]: IR Distance: up to 80 m;

[Bullet channel]: IR Distance: up to 30 m; White Light Distance: 30 m

PTZ

• Movement Range (Pan): 0° to 350°
• Movement Range (Tilt): [Bullet channel] 7° to 17° (manually adjust), [PTZ channel] -5° to 90°
• Pan Speed: pan speed: configurable from 0.1° to 30°/s; preset speed: 30°/s
• Tilt Speed: tilt speed: configurable from 0.1° to 30°/s, preset speed 30°/s
• Proportional Pan: yes
• Presets: 300
• Patrol Scan: 8 patrols, up to 32 presets for each patrol
• Power-off Memory: yes
• Park Action: preset,patrol scan
• 3D Positioning: yes
• PTZ Status Display: yes
• Preset Freezing: yes
• Scheduled Task: dome reboot,preset,patrol scan,dome adjust,aux output

General

• General Function: mirror,password protection,watermark,IP address filter
• Power: 12 VDC, max. 13.5 W,PoE+
• Operating Condition: -30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
• Demist: Demist by heating the glass
• Material: PC
• Dimension: 311.5 mm × 223.5 mm × 156 mm (12.26" × 8.80" × 6.14")
• Weight: Approx. 1.37kg
