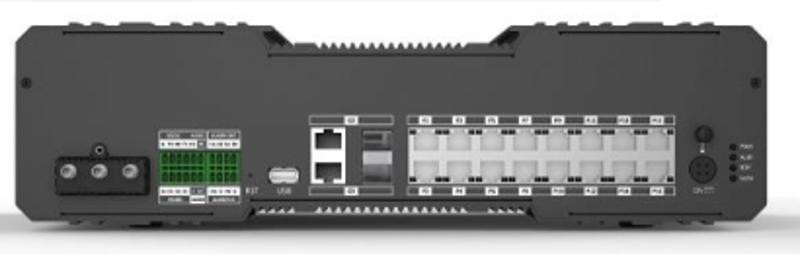

Hikvision Traffic Management Server - DS-TP50-16E/4T

• Up to 16 cameras can be connected for video/audio storage, picture saving and uploading.
• Supports OSD function and image composition function.
• Convenient HDD design for easy installation/uninstallation and maintenance.
• Low power consumption design, and the working temperature is from -40°C to 70°C.
• Audio alarm is triggered when opening the cabinet door, and the alarm will be uploaded to the center.
• (Optional) Equipped with GPS module.
• At least 2 remote hosts and 2 FTP hosts can be linked for data uploading.
• Web operation is supported.
• SDK

Specification

Interface

• Network Interface: 16 x 1000 M Ethernet interface, 1 x internal 10/100/1000 M self-adaptive Ethernet interface, 1 x external 10/100/1000 M self-adaptive Ethernet interface, 1 x internal 1000 M fiber interface, 1 x external 1000 M fiber interface
• Audio Input: 2
• Audio Output: 2
• Alarm Input: 2
• Alarm Output: 2
• RS-232 Interface: 2
• RS-485 Interface: 2
• USB: 1

Function

• Data Storage: Vehicle information (passing records and pictures) storage
• Video Recording: Video recording function. Recording duration is determined by the stream size and the HDD capacity.
• Data Uploading: ANPR and manual uploading
• Network Settings: Able to set two-segment IP address

System

• Processor: High-performance ARM A17 processor
• Operation System: Embedded Linux operating system
• Operating GUI: WEB
• HDD Storage: 4 x SATA (Each SATA interface supports up to 6TB HDD.)
• RESET: 1 x RESET button
• Indicator: 4 x indicator (1 x Power Indicator, 1 x Alarm Indicator, 1 x HDD Indicator, 1 x Ready Indicator)

General

• Working Temperature: -40 °C to +70 °C (-40 °F to +158 °F)
• Working Humidity: 10% to 90%
• Power Supply: 12 VDC/12.5 A
• Dimension(L × W × H): 370 × 273 × 102.5 mm (14.6 × 10.7 × 4.03 inch)
