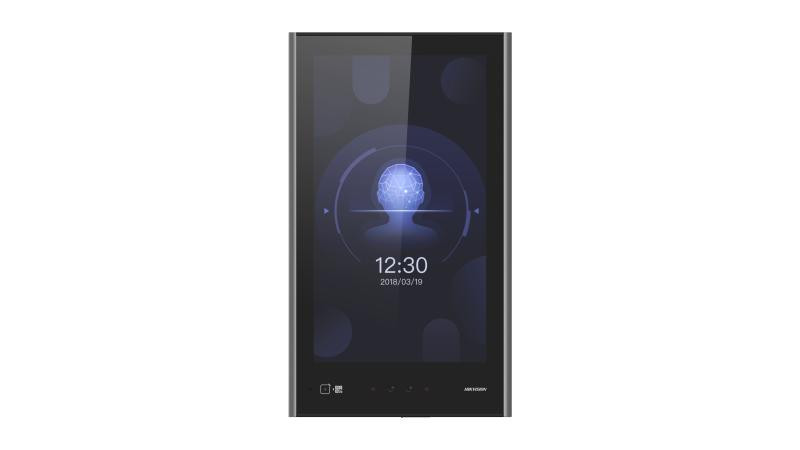

Hikvision Ultra Face Recognition Terminals - DS-K1T690MF-X
- Android system with deep learning algorithm
- 15.6-inch LCD touch screen, 2 MP wide-angle dual-lens
- 100,000 face capacity, 150,000 card capacity, and 150,000 event capacity
- Multiple authentication modes, including face, card, etc.
- Face recognition duration ≤ 0.2 s/User; face recognition accuracy rate ≥ 99%
- Supports mask wearing detection
- Supports single person and multiple people (Up to 5 people) recognition
- Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
- Connects to external access controller or Wiegand card reader via Wiegand protocol
- Two-way audio with client software, door station, indoor station, and main station
- Supports the third-party application importing. Up to 9 applications and 120 M for each can be imported. For details, see the user manual
Specification
Display
- Screen size: 15.6 inch
- Operation method: Capacitive touch screen, gesture recognition is available
- Type: IPS
Video
- Lens: 2
- Resolution: 2 MP
- FOV: HFOV = 88°; VFOV = 44°; DFOV = 108°
Audio
- Audio quality: Noise suppression and echo cancellation
Network
- Wired network: Support
Interface
- Network interface: 1 RJ-45, 10/100/1000 M self-adaptive
- Lock control: 1
- Exit button: 1
- Door contact input: 1
- Alarm input: 2
- Alarm output: 1
- TAMPER: 1
- RS-485: 1 RS-485 (Half duplex, HIKVISION)
- Wiegand: 1 Wiegand(Hik 26bit,Hik 34bit)
- USB: 1
Authentication
- Card type: M1 card
- Card reading frequency: 13.56 MHz
General
- Power supply: 12 VDC to 24 VDC, 4 A
- Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity: 10 to 90% (No condensing)
- Dimensions: 432 mm × 251 mm × 35 mm (17.0" × 9.9" × 1.4")
- Installation: Wall mounting, base mounting, and bracket mounting
- Language: English
- Platform: Hik-ProConnect and HikCentral Professional
Function
- Face anti-spoofing: Support
