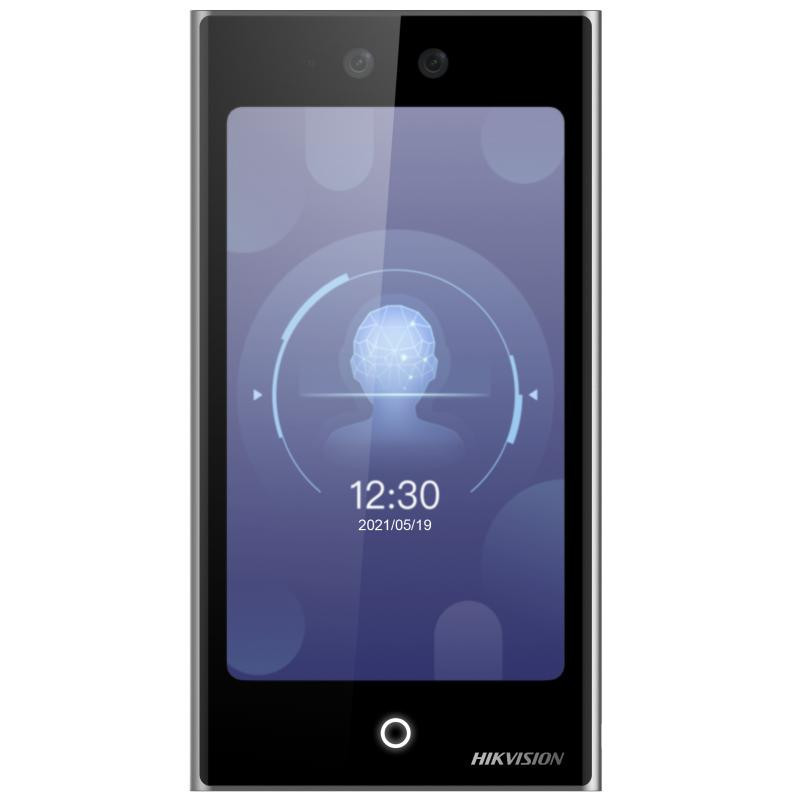

Hikvision Ultra Series Face Access Terminal -DS-K1T673TDX
- 7-inch LCD touch screen,2 Mega pixel wide-angle lens
- Recognition distance: 0.3 to 3 m
- Face recognition duration ＜ 0.2 s/User
- Face recognition accuracy rate ≥ 99%
- Built-in M1 card, Felica card, and DESfire card reading module (Presents card on the screen to authenticate)
- Face mask detection
- 100,000 face capacity, 10,000 fingerprint capacity (With fingerprint module), 500,000 card capacity, and 150,000 event capacity
- Supports ISAPI, ISUP 5.0, TCP/IP (IPv4 and IPv6)
- Supports single person and multiple people (Up to 5 people) recognition
Specification
System
- Operation system: Linux
Display
- Size: 7-inch
- Type: Touch screen
Video
- FOV: HFOV= 75.5°; VFOV= 41.5°; DFOV= 87°
- Pixel: 2 MP
- Lens: Dual-lens
- Video standard: PAL (Default)/NTSC
Network
- Wired network: Support 10/100/1000 Mbps self-adaptive
Interface
- Alarm input: 2
- Alarm output:1
- USB: 1 (For Module)
- Audio Output Interface: 1 (3.5 mm)
- Network interface: 1
- RS-485: 1
- Wiegand: 1
- Lock output: 1
- Exit button: 1
- Door contact input: 1
- TAMPER: 1
Capacity
- Card capacity: 500,000
- Face capacity: 100,000
- Event capacity: 150,000
Authentication
- Face recognition accuracy rate: ≥ 99%
- Card type: M1 card; DESfire card; Felica card
- Card reading distance: 0 to 3 cm
- Card reading duration: ＜ 1 s
- Face recognition duration: ＜ 0.2 s per person
- Face recognition distance: 0.3 to 3 m
General
- Power supply: 12 VDC to 24 VDC/2 A
- Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity: 0 to 90% (no condensing)
- Protective level: IP65
- Dimensions: 110.5 mm × 209.2 mm × 24 mm (4.35" × 8.24" × 0.94")
- Language: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean, Traditional Chinese, French and Turkish
- Gross Weight：1.06 kg (2.34 lb)
Net Weight：0.57 kg (1.26 lb)
