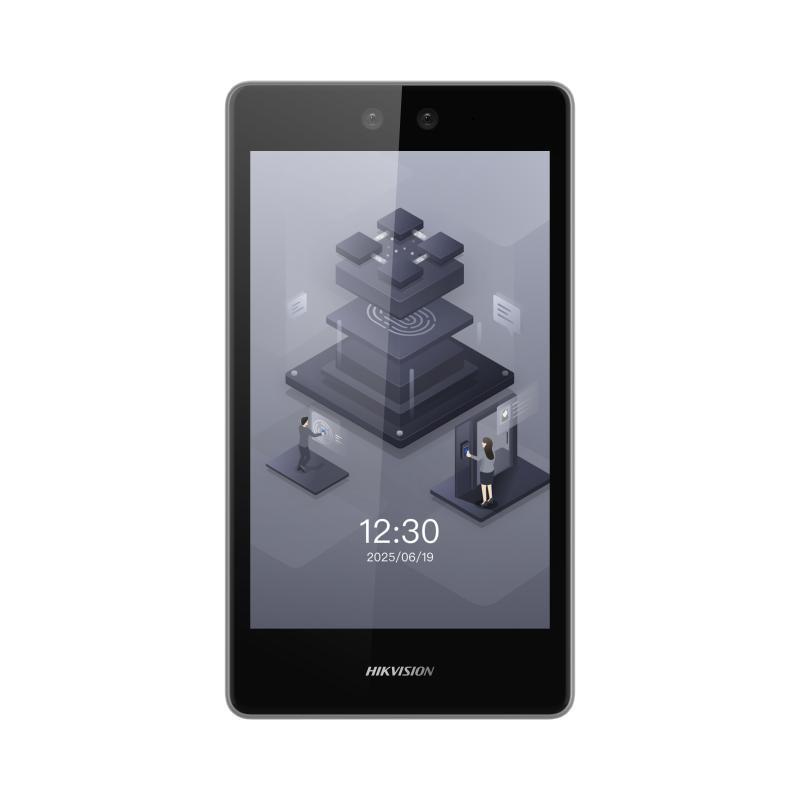

Hikvision Ultra Series Wall-Mounted Face Access Terminal - DS-K1T680DFW
- 8-inch touch screen with bezel-less design
- Presents card on the screen to authenticate
- Face recognition distance: 0.3 m to 3 m, duration ＜ 0.2 s/User, accuracy rate ≥ 99%
- 100,000 face capacity, 100,000 card capacity (Felica, DESfire, M1), 10,000 fingerprint capacity, and 150,000 event capacity
- Supports ISAPI, ISUP 5.0, Wiegand, RS-485, TCP/IP, Wi-Fi
- Two-way audio with indoor station and main station
- Configuration via the web client and mobile client
- Customizes attendance status name
Specification
Display
- Screen size: 8 inch
- Operation method: Capacitive touch screen
- Type: LCD
Video
- Lens: 2
- Resolution: 2 MP
- FOV: HFOV = 88°; VFOV = 44°; DFOV = 108°
Network
- Wired network: Support
- Wi-Fi: Support, 2.4 G, 802.11b/g/n
Interface
- Network interface: 1 RJ-45, 10/100/1000 M self-adaptive
- Lock control: 1
- Exit button: 1
- Door contact input: 1
- Alarm input: 2
Authentication
- Card type: DESfire card; Felica card
General
- Power supply: 12 VDC to 24 VDC, 3 A
- Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity: 0 to 90% (No condensing)
- Protective level: IP65
- Dimensions:127.3 mm × 232.1 mm × 23.5 mm (5.0'' × 9.1'' × 0.9'' )
Function
- Hik-Connect: Support
- Language: English, Thai, Brazilian Portuguese, Russian, Spanish, Arabic, Japanese, Ukrainian, and Indonesian
- QR code recognition: Support. The dimension of the recognized QR code picture should be larger than 6 cm × 6 cm.
- Face anti-spoofing: Support
Data Sheet
