• Stable electrical performance, compliant with ANSI/TIA-568.2-D, ISO/IEC11801.
• Supports Gigabit Ethernet (10GbaseT) standard, with bandwidth of 500MHz.
• Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.
• Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
• Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57V/1A DC power (PoE).
• Compliant with RoHS 2.0.

Specification

Category

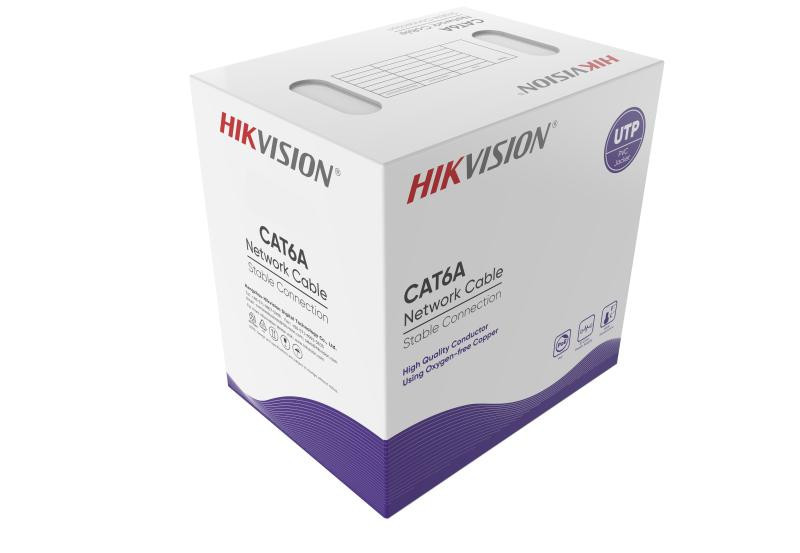

• Product Category: Cat.6A

Reference standard

• Reference Standard: ISO/IEC11801, ANSI/TIA-568.2-D, RoHS 2.0

Fire resistance

• Fire resistance: CPR Fca

Conductor

• Conductor Material: Solid-Bare Copper (99.95%)
• Conductor Diameter: 0.53 ± 0.01 mm (24AWG)

Insulation

• Insulation Material: HDPE
• Insulation Diameter: 0.95 ± 0.05 mm

Rip-cord

• Rip-cord: Yes

Jacket

• Jacket Material: PVC
• Jacket thickness: 0.50 ± 0.05 mm
• Jacket Diameter: 5.8 ± 0.4 mm

Jacket physical properties

• Tensile strength:

Before aging: ≥ 13.5 Mpa

After aging: ≥ 12.5Mpa

• Elongation:

Before aging: ≥ 150%

After aging: ≥ 125%

• Cold bend: -20 ± 2°C × 4h, 8 × cable O.D, no visible cracks

General Specifications

• Colour: Grey
• Length: 305 ± 1.5 m
• Separator: Yes
