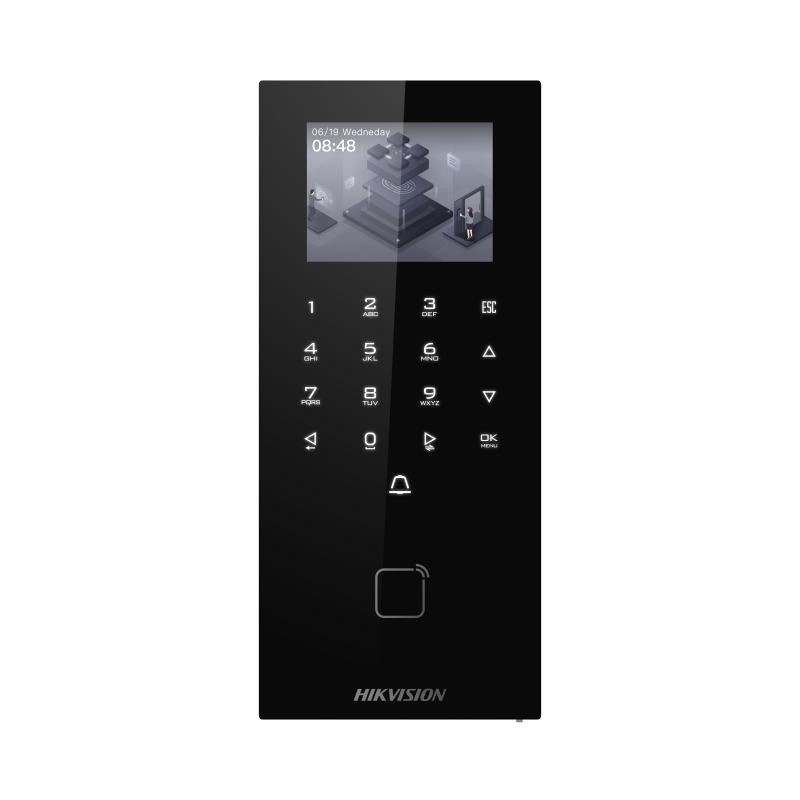

Hikvision Value Card Terminal - DS-K1T807EX-E1
- 2.4-inch LCD screen
- Multiple authentication methods, including card (EM card),and PIN, etc.
- Max. 5000 cards and 150,000 events
- Supports ISAPI and ISUP 5.0 protocols
- Configuration via web client
- Supports wired network and Wi-Fi (AP mode)
- Supports wiring with secure door control unit or card reader via RS-485
- Supports powered by 12 VDC or PoE and supports powering for device and door lock
DATASHEET
Specification
System
- Operating system: Linux
Display
- Screen size: 2.4 inch
- Type: LCD
- Resolution: 320 × 240
Audio
- Audio output: Support
Network
- Wired network: Not support
- Wi-Fi: Not support
- Bluetooth: Support
Interface
- Network interface: 1 RJ-45 10/100 Mbps self-adaptive
- Lock control: 1
- Exit button: 1
- Door contact input: 1
- Alarm input: 2
- Alarm output: 1
- TAMPER: 1
- RS-485: 1,RS-485 (Half duplex,HIKVISION）
- Wiegand: 1 Wiegand (W26, W34)
- USB: 1
- PoE: Support
Capacity
- Card capacity: 5000
- Event capacity: 150,000
Authentication
- Card type: EM card
General
- Power supply: 12 VDC
- Power consumption: ≤ 6 W
- Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity: to 90% (No condensing)
- Language: English, Spanish (South American), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese(Brazil), Turkish, Ukrainian, Italian, French
- Keypad: Support
- Dimensions: 172 mm × 76 mm × 27.5 mm (6.77" × 2.99" × 1.08")
- Installation: Wall mounting
- Weight;
Net weight: 0.377 kg (0.831 lb)
Rough weight: 0.562 kg (1.239 lb)
