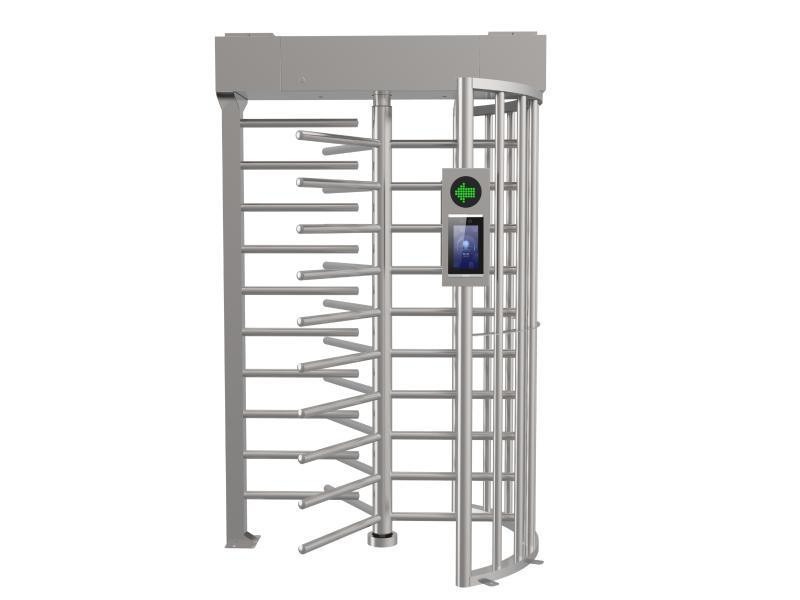

Hikvision Value Full Height Turnstile - DS-K3H4410-120/Pg-Dm60
- LED indicates the passing direction(forbidden or available).
- When the power is cut off, the system will automatically unlock the brake levers into a free-passing mode to facilitate the evacuation of people.
- Valid passing duration settings: System will cancel the passing permission if a person does not pass through the lane within the valid passing duration.
- Support bi-directional passing through.
System
- MCBF: More than 2 million times
- Motor: NA
General
- Throughput:
More than 30 persons per minute
The actual throughput is affected by the person passing rate and passing method.
- Lane width: 600mm
- Pedestal material:
SUS304 stainless steel 1.2mm(0.05'')
Stainless steel pipe 1.0mm(0.04'')
- Power supply: 100 to 240 VAC; 50 to 60 Hz
- Working temperature: -15℃ ~ 55℃ ( 5℉ ~ 131℉ )
- Working humidity: 10% to 90% (No Condensing)
- Dimensions:
Without package: 1400mm x 1200mm x 2230mm(55.1'' x 47.3'' x 87.8'')
With package: 2135mm x 1435mm x 1115mm(84.1'' x 56.5'' x 43.9'')
- Application environment: Indoor and outdoor
- Without package: 100 kg (221 lbs)
With package: 200 kg (441 lbs)
