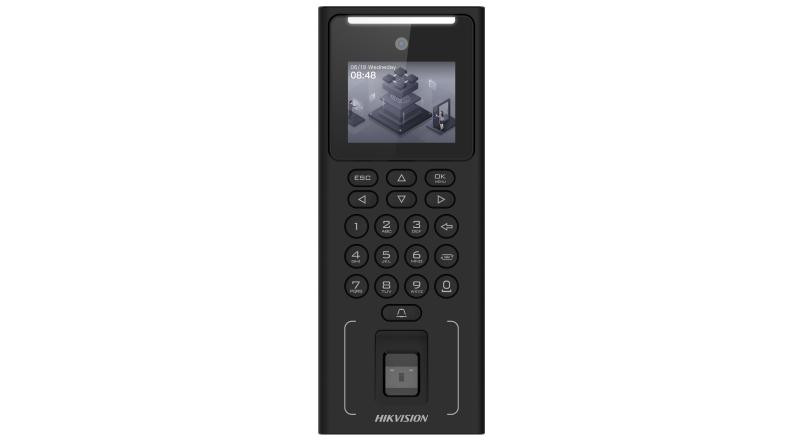

Hikvision Value Series Face Access Terminal - DS-K1T321EFWX-B

• 2.4-inch LCD screen, 2 MP lens
• Multiple authentication methods, including face, fingerprint, card (EM card), and PIN, etc.
• Max. 500 faces, 3000 cards, 3000 fingerprints and 150,000 events
• Face recognition duration < 0.2 s/User
• Supports ISAPI and ISUP 5.0 protocols
• Configuration via the PC web client and mobile web client
• Supports wired network and Wi-Fi (AP mode)
• Supports wiring with secure door control unit or card reader via RS-485
• Supports power supply by battery in the bracket
• Supports access control and local time and attendance function

DATASHEET

Specification

System

• Operating system: Linux

Display

• Screen size: 2.4 inch
• Type: LCD
• Resolution: 320 × 240

Video

• Lens: 1
• Video compression standard: PAL (Default) and NTSC
• Resolution: 2 MP (video stream: 720P)

Audio

• Audio output: Built-in buzzer

Network

• Wired network: Support
• Wi-Fi: Support, 2.4 G, 802.11b/g/n

Interface

• Network interface: 1 RJ-45, 10/100 M self-adaptive
• Lock control: 1
• Exit button: 1
• Door contact input: 1
• TAMPER: 1
• RS-485: 1 RS-485 (Half duplex, HIKVISION)
• USB: 1

Capacity

• Face capacity: 500
• Fingerprint capacity: 3000
• Card capacity: 3000
• Event capacity: 150,000

Authentication

• Face recognition distance: 0.3 m ~ 1.5 m
• Face recognition accuracy rate: > 99%
• Face recognition duration: < 0.2 s
• Card type: EM card

General

• Power supply;

  12 VDC

  Supports power supply by battery in the bracket

• Power consumption: ≤ 6 W
• Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working humidity: 0 to 90% (No condensing)
• Language: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese

Function

• Face anti-spoofing: Support
