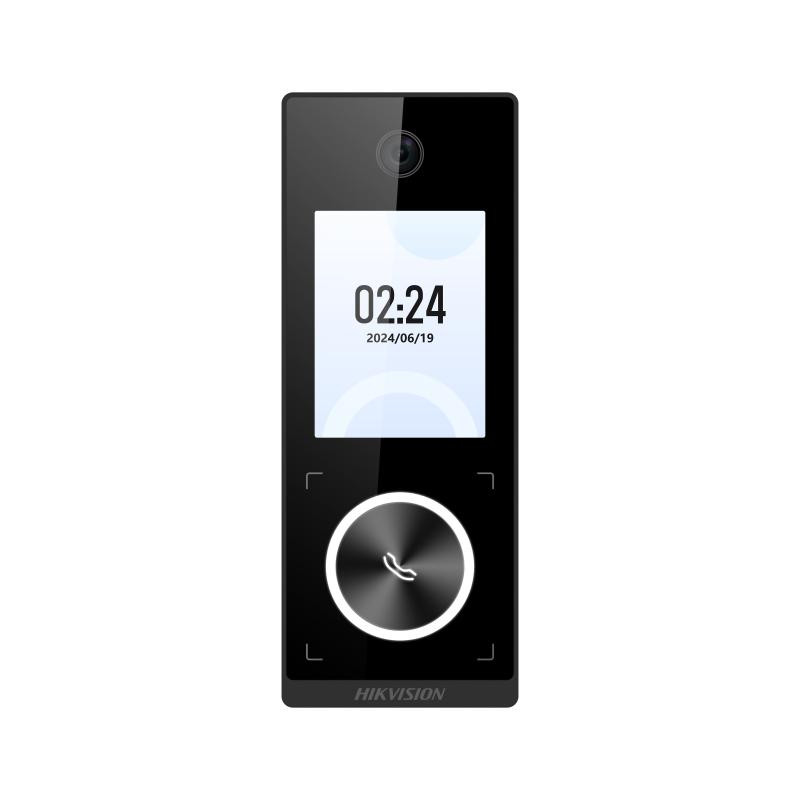

Hikvision Value Series Face Access Terminal - DS-K1T323MBWX-E1

• 2.4-inch display screen, 2 Mega pixel wide-angle lens
• 1,000 face capacity, and 3000 card capacity
• Face recognition duration < 0.2 s/User
• Supports face and card authentication
• Two-way audio with client software, indoor station, and main station
• Supports AP mode. Supports mobile Web and PC Web for configuration
• Supports powered by 12 VDC or PoE and supports powering for device and door lock.
• Supports M1 card
• Supports WDR

DATASHEET

Specification

System

• Operating system: Linux

Display

• Screen size: 2.4 inch
• Type: TFT
• Resolution: 240 × 320
• Operation method: Non touchable

Video

• Lens: ×1
• Video compression standard: PAL (Default) and NTSC

Network

• Wired network: 10/100 Mbps self adaptive
• Wi-Fi: Support
• Bluetooth: Support

Interface

• PoE: IEEE802.3at, standard PoE
• Network interface: 1
• Wiegand: 1, supports Wiegand input, single direction
• Lock control: 1
• Exit button: 1
• Door contact input: 1
• TAMPER: 1

Capacity

• User capacity: 1000
• Face capacity: 1000
• Card capacity: 3000
• Event capacity: 150,000

Authentication

• Face recognition distance: 0.3 m ~ 1.5 m
• Face recognition accuracy rate: > 99%
• Face recognition duration: ＜ 0.33 s
• Card type: M1 card;M1 card content;CPU card No.
• Card reading frequency: 13.56 MHz

General

• Button: 1 physical call button
• Power supply: 12 VDC, 1 A, standard PoE
• Working temperature:-30 °C to 60 °C (-22 °F to 140 °F)
• Working humidity: 0 to 90% (No condensing)
• Dimensions: 165.2 mm × 75.7 mm × 25 mm （6.5" × 2.98" × 0.98")
• Installation: Wall mounting
• Protective level: IP65
• Language: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Turkish, French, Traditional Chinese
• Weight;

  Net weight: 0.19 kg (0.42 lb)

  Rough weight: 0.59 kg (1.3 lb)

Function

• QR code recognition: Support scan QR code via camera
• Face anti-spoofing: Support
• Two-way audio: Support
