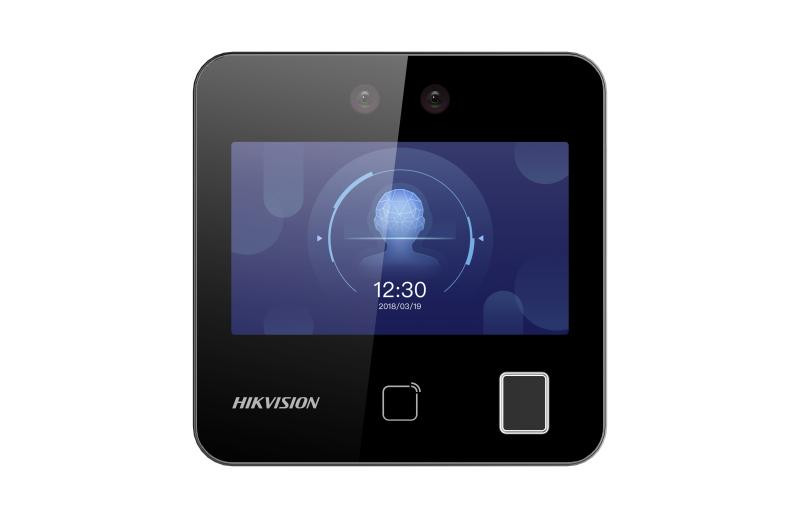

Hikvision Value Series Face Access Terminal - DS-K1T343MFWX-B
- Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
- Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
- Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
- Supports ISAPI, ISUP5.0
- Configuration via the web client
- Face recognition. Distance: 0.3 m to 1.5 m
- Duration < 0.2 s/User
- Accuracy rate ≥ 99%
- Supports power supply by battery in the bracket
- Supports access control local time and attendance function
DATASHEET
Specification
System
- Operating system: Linux
Display
- Screen size: 4.3-inch
- Type: LCD
- Resolution: 480 × 272
- Operation method: Capacitive touch screen
Video
- Resolution: 2 MP
- Lens: 2
- Video compression standard: PAL (Default) and NTSC
Network
- Wired network: Support
- Wi-Fi: Support, 2.4 G, 802.11b/g/n
Interface
- Network interface: 1 RJ-45, 10/100 M self-adaptive
- RS-485: 1 RS-485 (Half duplex, HIKVISION)
- Wiegand: 1 Wiegand (W26, W34)
- Lock control: 1
- Exit button: 1
- Door contact input: 1
- TAMPER: 1
- USB: 1
Capacity
- Face capacity: 1,500
- Fingerprint capacity: 3,000
- Card capacity: 3000
- Event capacity: 150,000
Authentication
- Face recognition distance: 0.3 m ~ 1.5 m
- Face recognition accuracy rate: > 99%
- Face recognition duration: ＜ 0.2 s
- Fingerprint recognition duration: ＜1 s
- Card type: M1 card
- Card reading frequency: 13.56 MHz
General
- Power supply:
12 VDC, 1 A (power adapter included)
Supports power supply by battery in the bracket
- Working temperature: -10 °C to 40 °C (14 °F to 104 °F)
- Working humidity: 0 to 90% (No condensing)
- Dimensions: 118.4 mm × 118.4 mm × 21.8 mm (4.66" × 4.66" × 0.86")
- Installation: Wall mounting, base mounting
- Protective level: IP65
- Language: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean; Japanese
- Weight;
Gross weight: 0.71 kg (1.57 lb)
Net weight: 0.23 kg (0.51 lb)
- Application environment: Indoor
Function
- Face anti-spoofing: Support
