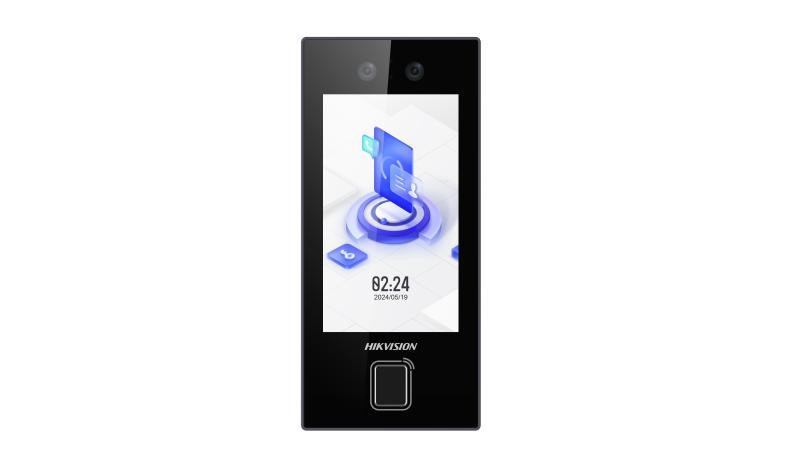

Hikvision Value Series Face Access Terminal - DS-K1T344MBWX-QRE1
- Supports 4.5-inch LCD touch screen, 2 Mega pixel wide-angle lens, and built-in M1 card reading module
- Max.3000 faces capacity, and Max.3000 cards
- Face Recognition Distance: 0.3 m to 1.5 m; Duration ＜ 0.2 s/User; Accuracy rate ≥ 99%
- Supports face, card, PIN, and QR code authentication
- Two-way audio with client software, indoor station, and main station.
- Supports mobile web and PC web for configuration
- Supports powered by 12 VDC or PoE and supports powering for device and door lock.
Specification
System
- Operating system: Linux
Display
- Screen size: 4.5-inch
- Resolution: 480 × 854
- Type: LCD
- Operation method: Touchable
Video
- Lens: × 2
- Video standard: PAL (Default) and NTSC
Network
- Bluetooth: Support
- Wired network: 10/100 Mbps self adaptive
- Wi-Fi: Support
Interface
- Alarm input: 2
- Alarm output: 1
- PoE: IEEE802.3at, standard PoE
- Network interface: 1
- RS-485: 1
- Wiegand: 1, supports Wiegand input, single direction
- Lock control: 1
- Exit button: 1
- Door contact input: 1
- TAMPER: 1
- USB: 1
Capacity
- User capacity: 3000
- Card capacity: 3000
- Face capacity: 3000
- Event capacity: 150000
Authentication
- Card type: M1 card;M1 card content
- Card reading frequency: 13.56 MHz
- Face recognition duration: ＜ 0.2 s
- Face recognition accuracy rate: ＞99%
- Face recognition distance: 0.3 to 1.5 m
General
- Button: No physical call button
- Power supply: 12 VDC, 1 A, standard PoE
- Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity: 10 to 90% (No condensing)
- Dimensions: 165.2 mm × 75.7 mm × 25 mm (6.5" × 2.98" × 0.98")
- Installation: Wall mounting
- Protective level: IP65
- Language: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Turkish, French, Traditional Chinese, Kazakh, Uzbek
- Gross weight: 0.60 kg (1.33 lbs)
Net weight: 0.30 kg (0.66 lbs)
