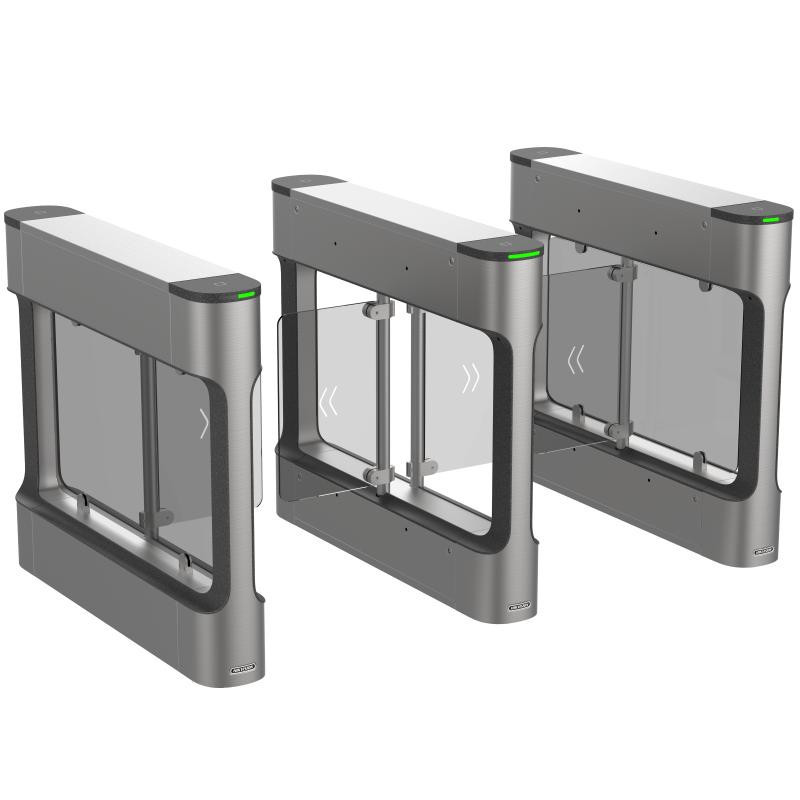

Hikvision Value Swing Barriers
- 6 pairs of IR light detectors: Permissions validation and anti-tailgating
- LED light indicates passing direction
- The barrier will stop working for a period of time when detecting obstruction when open/close barrier
- Self-detection, Self-diagnostics, and automatic alarm
- System will cancel the passing permission if a person does not pass through the lane within the valid passing duration
- Door remaining open when fire alarm triggered: The barrier will open automatically when alarm is triggered.
- Barrier will automatically open when powering down
Specification
System
- Motor: Brushless motor
- MCBF: ≥ 3 million times
Interface
- Network interface: 1
- Lock control: 2
- Exit button: 2
- Alarm output: 2
- RS-485: 4
- RS-232: 2
Capacity
- Face capacity: 500,000
- Card capacity: 500,000
General
- Throughput:
20 to 60 persons per minute
The actual throughput is affected by the person passing rate and passing method.
- Lane width: 550 mm to 1100 mm
- Barrier material: Stainless steel pipe; Acrylic
- Pedestal material: SUS304 stainless steel
- Power consumption: 65W (stand by)
- Working temperature: -20 °C to 65 °C °C (-4 °F °F to 149 °F °F)
- Working humidity: 10% to 95% (No condensing)
- Dimensions:
Without package: 1200 mm × 200 mm × 1020 mm (47.2" × 7.9\" × 40.2\")
With package: 1408 mm × 348 mm × 1156 mm (55.4 × 13.7\" × 45.5\")"
- Net:
Left: 38.3 kg (84.5 lb)
Middle: 43.3 kg (95.5 lb)
Right: 40.2 kg(88.6 lb)
Gross:
Left: 66.5 kg (146.6 lb)
Middle: 71.5 kg (157.7 lb)
Right: 68.4 kg (150.8 lb)
Configuration
- Lane width: 650;750;900;1100
- Pedestal length: 1200 mm
- Module selection: YES
- Pedestal width: 200 mm
- Wall distance: 60 mm
- Base: YES
- Barrier material: Acrylic glass; Stainless steel pipe
- Application environment: Indoor and outdoor
- Authentication: modeCard; Face; QR code
- Card type: EM;M1
- Recommended width: 650 mm
- Base model: DS-KSM01/B411
- Product type: Swing barrier
- Remote controller type: 433Mhz;868Mhz
- Convert Face: NO
- Door Height: Default (0.77m)
- Door wing gap: Default:50mm
