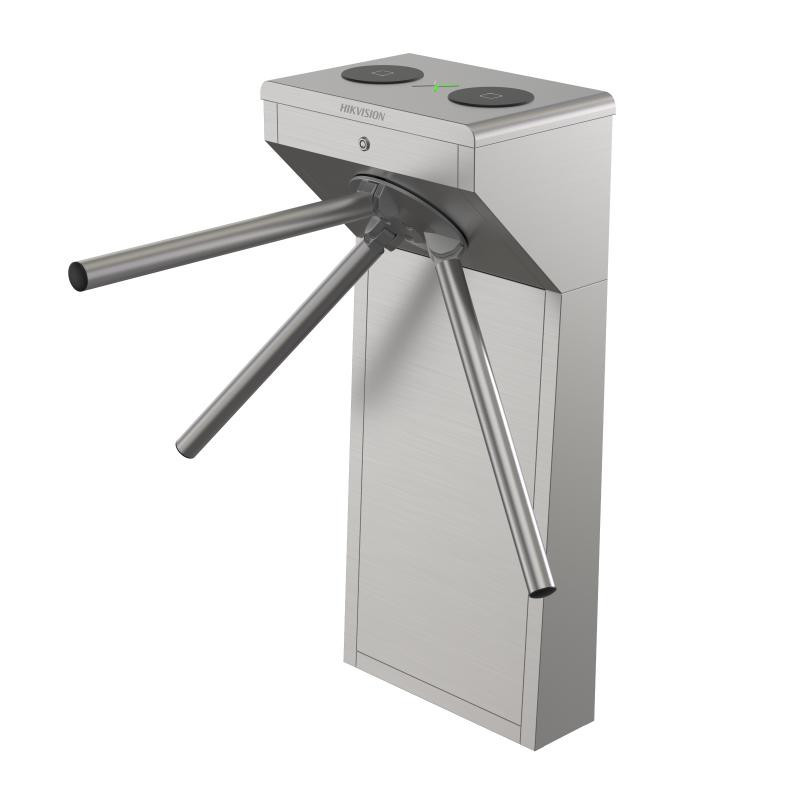

Hikvision Value Tripod Turnstile - DS-K3G200X-R
- Bidirectional (Entering/Exiting) lane.
- Support remote control and management by HCP software.
- High-brightness LED indicates the entrance/exit and passing status except "Pg" type.
- Fire alarm passing: When triggered, the arms will be dropped automatically for emergency evacuation.
- Support PC web browser, easy to do the configuration.
- Support ISAPI protocol for 3rd party integration development.
System
- MCBF: 2 Million
Interface
- Network interface: TCP/IP
- Lock control: x 2
- Exit button: x 2
- Alarm output: x 2
- TAMPER: NA
- Fire alarm input: x 1
- Case input: x 2
Hardware
- Access controller: Built-in
- Network switch: Not included
- Power supply for face recognition module: Not included
- Keyfob: Not supported
Capacity
- Card capacity: 500,000
- Event capacity: 500,000
Authentication
- Card type: EM, M1, Desfire, Felica
General
- Throughput:
More than 25 persons per minute
The actual throughput is affected by the person passing rate and passing method.
- Lane width: 550mm
- Barrier material: SUS304 stainless steel pipe
- Pedestal material: SUS304 stainless steel 1.0mm(0.03'')
- Indicator: Yes, except for "Pg" type
- Power consumption: 35W (stand by)
- Working temperature: -20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity: 0% to 95% (No condensing)
- Dimensions:
Without package: 426 mm ×286 mm × 982.5 mm (16.77" × 11.26\" × 38.68\")
With package: 700 mm × 430 × 1120 mm (27.56 × 16.93\" × 44.09\")"
- Without package:21 kg (46.3 lb)
With package: 29.5 kg (65 lb)
- Approval: CE, CB, RoHS, REACH, WEEE
