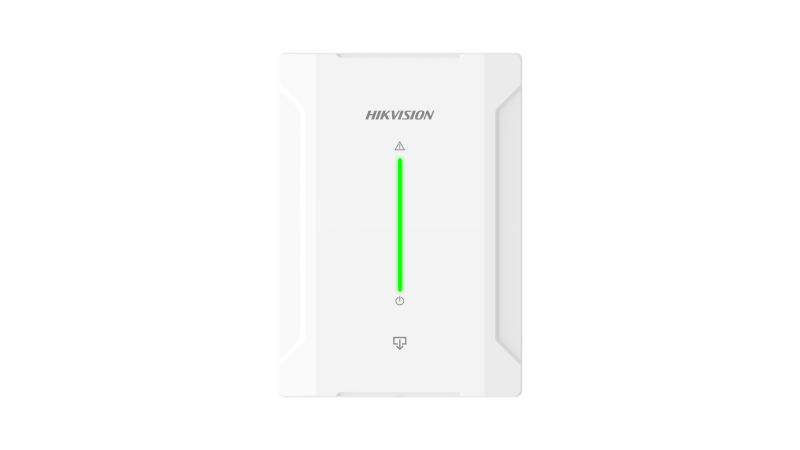

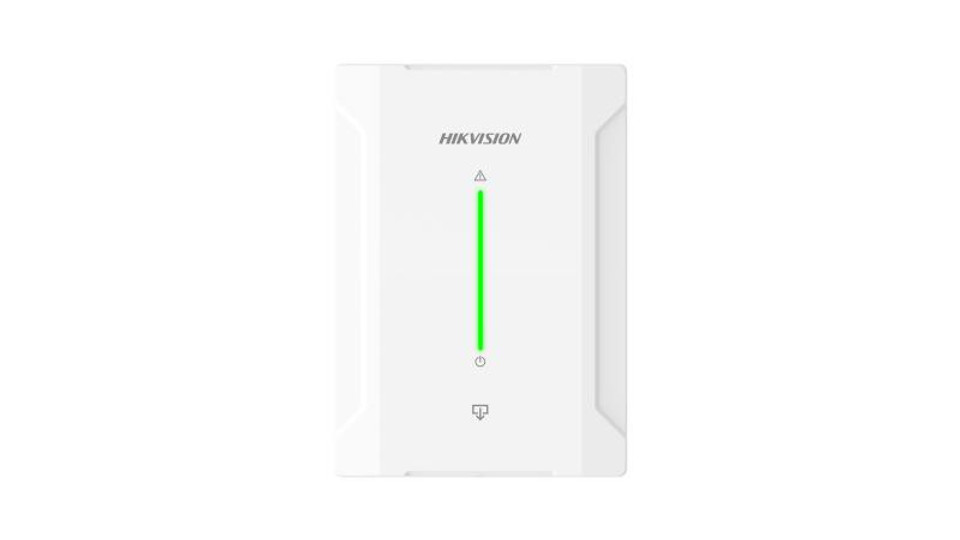

Hikvision Wired 4-way low current relay - DS-PM1-O4L-H
- 4 on-board low current relays, supporting 6-30V and up to 5A current
- 1 power output, maximum 500mA
- Powered by Speed-X technology, supporting expander cascading with 1 uplink Speed-X port and 1 downlink Speed-X port
Specification
Hardware features
- Serial port: 1 TTL serial port
- Tamper-Proof: Support (front and rear)
- Bus: 2×Speed-X bus, 1 uplink for control panel connection and 1 downlink for next expander
Display
- LED Indicator: 1 for power，1 for fault
Electrical characteristics
- Power supply: 11 to 24 VDC
- Typical voltage: 12 VDC
- Power consumption:
Maximum current 153 mA@12 VDC;
Quiescent current 70mA@12 VDC
- Output Current: Maximum 500 mA
- Output Voltage: 9 to 12 VDC
Data Sheet(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +44 330 043 2524 | You can also use the quote request page
