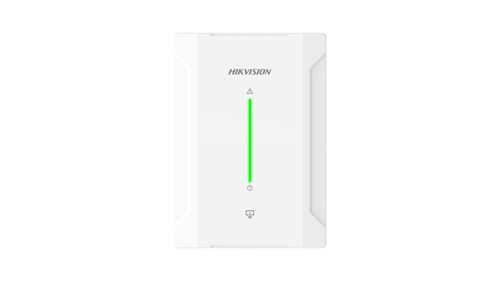

Hikvision Wired Input Expander (Cascade) - DS-PM1-I8O2-H
- 8 on-board wired zones
- Support 3EOL connection(Alarm: 1KΩ; Tamper: 1KΩ; Fault: 2.2KΩ)
- Support zone alarm, tamper, masking, fault, short detection
- 1 power output for wired detectors
- 2 Speed-X bus, supporting wired input expander cascade mode
Specification
-
Hardware features
- Alarm input: 8
- IO Output: 2 (connect to relay module)
- Bus: 2×Speed-X bus, 1 input for control panel connection and 1 output for expander cascading
- Tamper-Proof: Support (front and rear)
Display
- LED Indicator: LED indicators: 1 for power, 1 for fault
Electrical characteristics
- Power supply: 11 to 24 VDC
- Typical voltage: 12 VDC
- Power consumption:
Maximum current: 119 mA@12 VDC
Quiescent current: 45 mA@12 VDC
- Output Voltage: 9 to 12 VDC
- Output Current: Maximum 500 mA
General
- Operation temperature: -10°C to 40°C
- Operation humidity: 10% to 90%
- Shell material: Plastic
- Dimension(WxHxD): 110 mm × 155 mm × 32 mm
- 252.5 g
