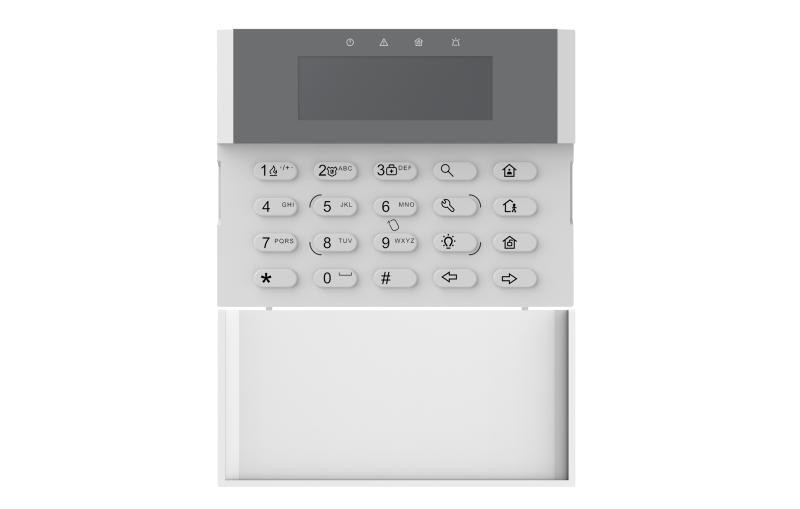

Hikvision Wired LCD Keypad - DS-PK1-LRT-HWE
- LCD screen display
- Supports one-touch arm（ Arming without password）
- Supports Fire/Panic/Medical alarm key
- Supports company name, phone number, time display
- Supports 2 on-board alarm inputs and 1 on-board alarm output
- Supports maximum 64 keyfobs
Specification
- Hardware features
- Tag reader built in1 Built-in Tag Reader
- Serial port1 TTL Serial Port
- Tamper-Proof1 Back-cover Tamper-switch（Will be damaged when tamper triggered）
- Buzzer1 On-board Buzzer
- Function key8 Function keys Query Away Aram, Stay Arm, Disarm, Alarm Output, Project, Left, Right
- RS-4851 Speed-X bus
- Alarm input2 On-board Alarm inputs
- Alarm output1 On-board Alarm output
- Display
- Numeric key0 to 9，*，#
- Display screen LCD Screen
- Indicator
4 indicators and 1 backlight：
1. Power：Green
2. Faults：Fault-Orange / Alert-Flashing orange / Find me mode-flashing green
3. Armed：Blue
4. Alarm：Red
5. Keypad button backlight：White
- Electrical characteristics
- Power supply10.2 to 14.4 VDC
- Typical voltage12 VDC
- Power consumption
Maximum current: 150mA@12VDC
Quiescent current: 72mA@12VDC
- Wireless transmission
- RF frequency433MHz
- General
- Dimension(WxHxD)150mmx115mmx28mm
- ColorWhite
- Operation temperature- 10 °C to + 55 °C (14 °F to 131 °F)
- Operation humidity10%～90%
- Device management
- Keyfob: 64
