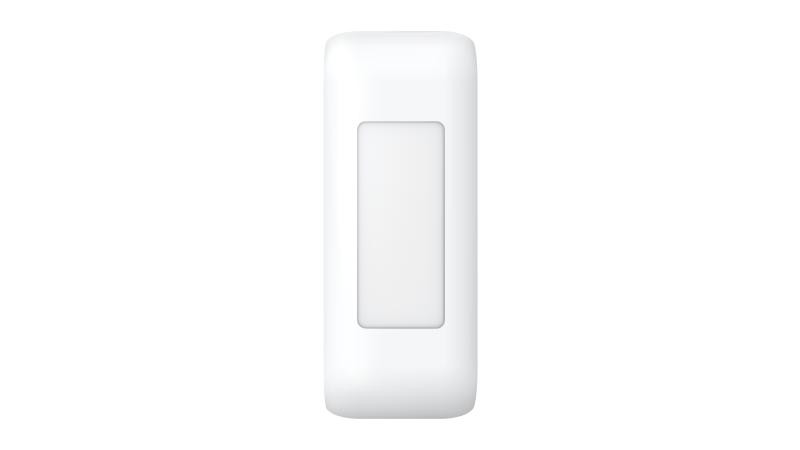

Hikvision Wired PIR Curtain Detector - DS-PDC5NC-EG2
- · Slim design for window frame installation
- · Automatic sensitivity
- · Directional detection support
- · Pack of 10 pcs
Specification
Detection Performance
- Detection Method: Passive Infrared
- Detection Range: 5m
- Detection Angle: 5°
- Detection Zones: 28
- Detectable Speed: 0.3～2m/s
- Sensitivity: Auto
- White Light Filter: 6500lux
- Digital Temperature Compensation: Support
- Creep Zone Protection: Support
Feature
- Digital Processing: Support
- Tamper Protection: Front
- Directional Detection: Support
Interface
- Alarm Output: Normally Closed
- LED Indicator: Blue (Alarm)
Transmission
- Transmission Method: Wired
Electrical Characteristics
- Power Supply: 9 to 16 VDC
- Typical Voltage: 12 VDC
- Power Consumption:
Maximum current：15mA @12VDC
Quiescent current：15mA @12VDC
General
- Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity: 10% to 90%
- Dimension (WxHxD): 29.7mm × 78.1mm × 24.8mm
- 31.5g
- Mounting Height: 2.4 to 4m
- Mounting Method: Ceiling
- Application Scenario: Indoor
