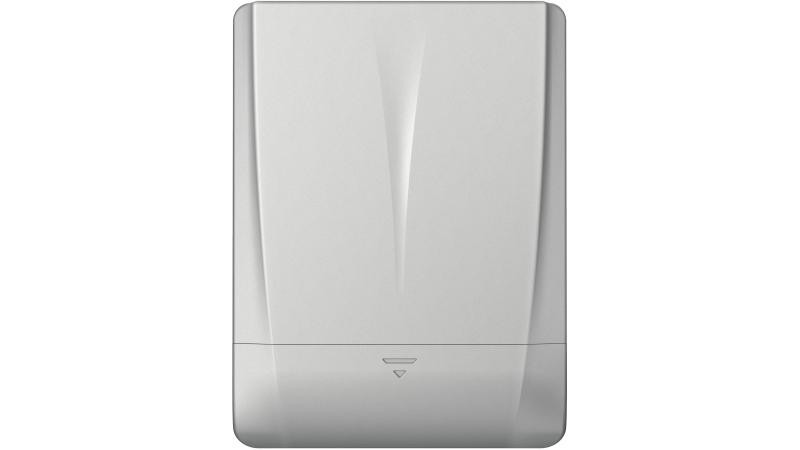

Hikvision Wired Seismic Detector - DS-PDSKM-VG3
- High quality G-sensor offering early detection
- Adjustable sensitivity with gross attack override
- Advanced digital background-noise filter and indication
- IK10 impact resistance
Specification
Detection Performance
- Detection Method: Shock Sensor
- Detection Range: Up to 5m Radius
- Sensitivity: 8 Levels by DIP Switch
Feature
- Digital Processing: Support
- Tamper Protection: Front; Rear
- Rapid Temperature Rise Detection: Support
- Displacement Detection: Support
Interface
- Alarm Output: Normally Closed
- LED Indicator: Blue (Alarm), Red(Noise Indication)
Transmission
- Transmission Method: Wired
Electrical Characteristics
- Power Supply: 9 to16 VDC
- Typical Voltage: 12 V
- Power Consumption:
Maximum current：17mA @12VDC
Quiescent current：17mA @12VDC
General
- Operation Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
- Storage Temperature: -50 °C to 70 °C (-58 °F to 158 °F)
- Operation Humidity: 10% to 90%
- Shell Material: Die-cast metal
- IK Rate: IK10
- Dimension (WxHxD): 60mm×80mm×19.5mm
- 226g
- Application Scenario: Indoor
