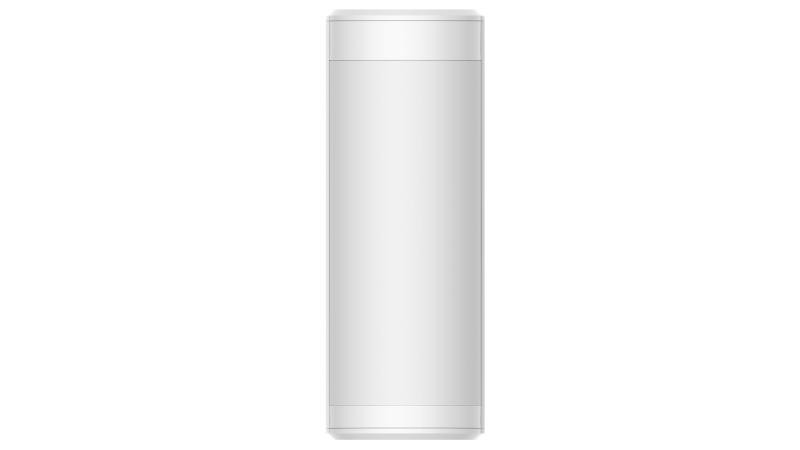

Hikvision Wired Triple Signal Detector - DS-PDTT15AM-LM
- 90°@180° adjustable coverage
- · IP65 weather resistance for outdoor application
- · Active IR anti-masking
- · Automatic sensitivity
- · Selectable EOL resistors for alarm and tamper-proof wiring
Specification
Detection Performance
- Detection Method: Passive Infrared;Microwave
- Detection Range: 15m
- Detection Angle: 90° @ 180° adjustable
- Detection Zones: 92
- Detectable Speed: 0.3～2m/s
- Sensitivity: Auto; Low
- White Light Filter: 10000lux
- Microwave Frequency: 24GHz(24.15～24.25GHz)
- Pet Immunity: 40Kg
- Digital Temperature Compensation: Support
- Anti-masking: Support
- Adaptable Coverage
Support
Pattern mask included
Feature
- Digital Processing: Tri-Signal Logic
- Sealed Optics: Support
- Tamper Protection: Front; Rear
- Anti-Sway Analytics: Support
General
- Operation Temperature: -25 °C to 60 °C (-13 °F to 140 °F)
- Storage Temperature: -25 °C to 60 °C (-13 °F to 140 °F)
- Operation Humidity: 10% to 90%
- IP Rate: IP65
- Dimension (WxHxD): 75mm × 202mm × 73mm
- 350g
- Mounting Height: 8 to 1.2m
- Mounting Method: Wall
- Application Scenario: Outdoor
