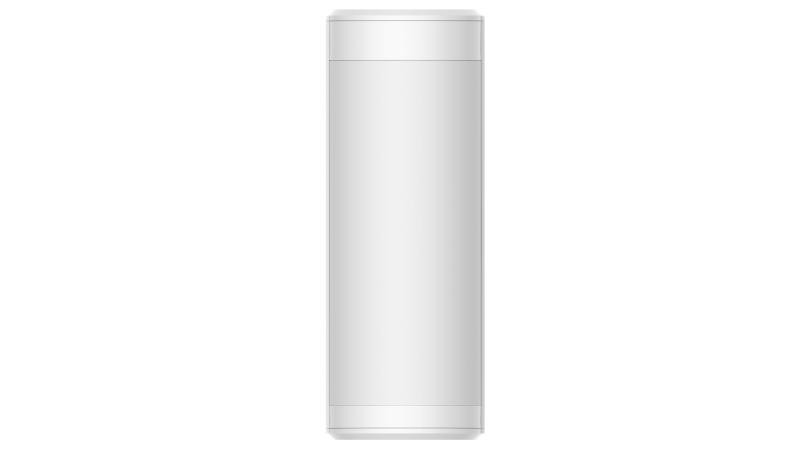

Hikvision Wireless 180° Panoramic Detector - DS-PDQP15AM-LM-WE
- 180° panoramic coverage
- Active IR anti-masking
- IP65 weather resistance for outdoor application
- Multiple enrollment methods and easy installation
- Frequency hopping against jamming for reliable transmission
Specification
Detection Performance
- Detection Method: Passive Infrared
- Detection Range: 15 m
- Detection Angle: 180°
- Detection Zones: 40
- Detectable Speed: 0.3～2m/s
- Sensitivity: Auto; Low
- White Light Filter: 20000lux
- Pet Immunity: Up to 40 kg (cm height)
- Digital Temperature Compensation: Support
- Anti-masking: Support
- Adaptable Coverage: Pattern mask included
Feature
- Digital Processing: Support
- Sealed Optics: Support
- Tamper Protection: Front; Rear
- Environment Temperature Indicator: Support
- Signal Strength Indicator: Support
Interface
- Power Switch: Power up enrolling
- LED Indicator: Blue(alarm), green+orange (mask)
Transmission
- Transmission Technology: Tri-X Wireless
- Transmission Method: Two-Way RF Wireless
- Transmission Frequency: 868MHz
- Transmission Security: AES-128 Encryption
- Transmission Range(Free Space): 1.6Km
- Frequency Hopping: Support
- Enrolling Method: Power up; Remote ID;QR Code
Detection Performance
- Detection Method: Passive Infrared
- Detection Range: 15 m
- Detection Angle: 180°
- Detection Zones: 40
- Detectable Speed: 0.3～2m/s
- Sensitivity: Auto; Low
- White Light Filter: 20000lux
- Pet Immunity: Up to 40 kg (cm height)
- Digital Temperature Compensation: Support
- Anti-masking: Support
- Adaptable Coverage: Pattern mask included
Feature
- Digital Processing: Support
- Sealed Optics: Support
- Tamper Protection: Front; Rear
- Environment Temperature Indicator: Support
- Signal Strength Indicator: Support
Interface
- Power Switch: Power up enrolling
- LED Indicator: Blue(alarm), green+orange (mask)
Transmission
- Transmission Technology: Tri-X Wireless
- Transmission Method: Two-Way RF Wireless
- Transmission Frequency: 868MHz
- Transmission Security: AES-128 Encryption
- Transmission Range(Free Space): 1.6Km
- Frequency Hopping: Support
- Enrolling Method: Power up;Remote ID;QR Code
General
- Operation Temperature: -25°C to 60°C (-13°F to 140°F)
- Storage Temperature: -25°C to 60°C (-13°F to 140°F)
- Operation Humidity: 10% to 90%
- IP Rate: IP65
- Dimension (WxHxD): 75 mm × 202 mm × 73 mm
- 5 g
- Mounting Height: 8 m to 1.2 m
- Mounting Method: Wall
- Application Scenario: Outdoor
