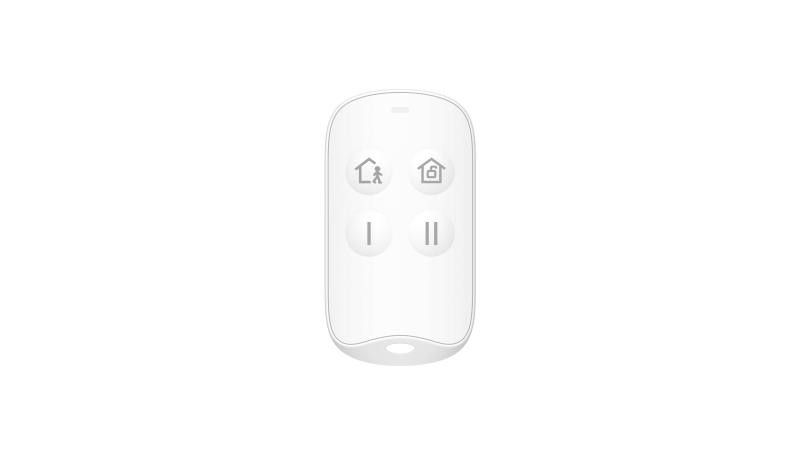

Hikvision Wireless Keyfob - DS-PKF201-WE(EU)
- Remote arming and disarming
- Configurable I and II buttons can provide more useful functions
- Frequency hopping against jamming for reliable transmission
Specification
Communication
- Transmission technology: 868.0-868.6 MHz
- Transmission range (free space): Up to 900 m
- Maximum effective radiated power (ERP): 10 mW max
- Radio signal modulation: 2GFSK
Hardware features
- Number of buttons: Four buttons
- Configuration of buttons:
I key
II key
Electrical characteristics
- Power supply: 1 × CR2032 battery
- Power consumption:
max current: 40 mA
quiescent current: 0.4 uA
- Battery life: Up to 2 years (standby time)
General
- Operation temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Operation humidity: 10% to 90%
- Dimension (W×H×D): 35 × 64 × 11.2 mm
- 15 g
