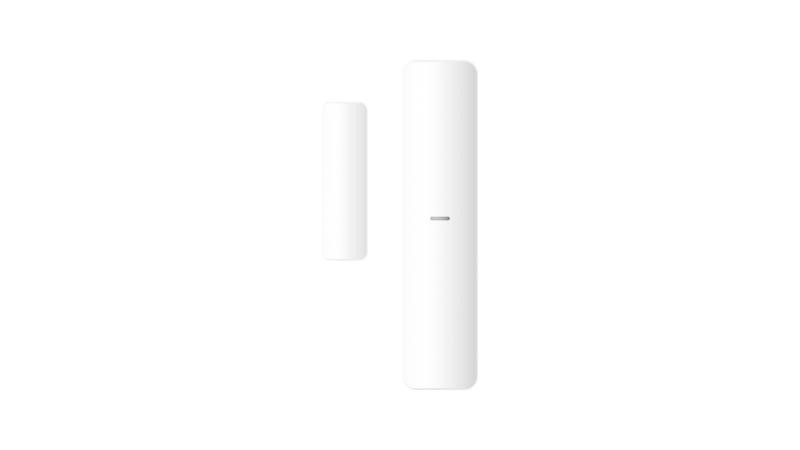

Hikvision Wireless Magnetic Contact - DS-PD201MC-WB
- Simple and elegant appearance design
- Frequency hopping against jamming for reliable transmission
Specification
Communication
- Transmission technology: 433.1-433.7 MHz
- Transmission range (free space): Up to 1,200 m
- Maximum effective radiated power (ERP): 25 mW max
- Radio signal modulation: 2GFSK
Detection performance
- Detection method: Opening Contact
- Detection gap: 25 mm max
Software features
- Temperature indicator: Yes
Indication
- Indication method: LED
Electrical characteristics
- Power supply: 1 × AA battery
- Power consumption:
max current: 140 mA
quiescent current: 1 uA
- Battery life: Up to 2 years (standby time)
General
- Dimension (W×H×D):
24 x 104 x 23.5 mm
14.4 x 50.0 x 17.5 mm
- 49 g
- Operation temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Operation humidity: 10% to 90%
