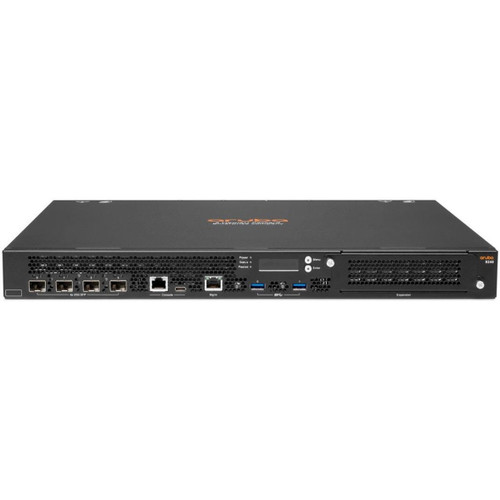

HPE 9240 Router - Management Port - 5 - 25 Gigabit Ethernet - 1U - Rack-mountable - R7H99A

The Aruba 9200 Series Campus Gateway delivers enhanced Wi-Fi scalability and security to meet demands at the Edge. Engineered for mission-critical environments, the 9200 Series delivers high performance, seamless roaming, 24x7 reliability, and always-on connectivity - even during upgrades. Unlike other Edge appliances, the 9200 Series provides consistent policy enforcement across wired and wireless and dynamic segmentation for any user or device - even IoT.

ENTERPRISE-CLASS PERFORMANCE

For medium and large enterprises who require high performance and 24x7 reliability, the 9200 Series Campus Gateway is designed to scale to meet today's and future demands. The 9200 Series Gateway builds upon Aruba's legacy 7200 Series Gateways to provide next-generation connectivity for up to 2,048 APs and 32,000 devices.

To ensure high availability, the 9200 Series Gateway supports live upgrades and multiple gateways can be clustered together at each location for business continuity. Zero touch provisioning eliminates the need for on-site IT support.

INVESTMENT PROTECTION

The Aruba 9200 Series Campus Gateway eliminates the need for overprovisioning or frequent hardware refreshes by allowing enterprises to use tier-based pricing to unlock higher capacity levels. New to the 9200 Series Gateway is a flexible capacity license model. Enterprises can opt for hardware only (20 Gbps total throughput, 512 APs/16K devices) or for greater capacity they can add silver perpetual licenses (30 Gbps total throughput, 1K APs/24K devices) or gold perpetual licenses (40 Gbps total throughput, 2K APs/32K devices).

POWERFUL SECURITY ENFORCEMENT

Aruba 9200 Series Campus Gateways deliver consistent policy enforcement across wired and wireless via dynamic segmentation. Traffic is tunneled to the gateway where granular rules are applied for any user, location, application, or device type - including IoT. For example, traffic can be segmented based on a defined set of user types such as guest, contractor, or employee to provide greater levels of security.

To deliver unified policy enforcement, the 9200 Series Campus Gateways rely on a built-in Layer 4-7 stateful firewall known as the policy enforcement firewall (PEF). It streamlines policy management by working across WLAN, LAN, and WAN. When deployed alongside Aruba ClearPass Policy Manager, policies are automatically enforced to simplify SSID, VLAN, and policy management.

• Offers high performance and reliable connectivity to the Internet and other offices
• Rack-mountable feature for convenient and safe installation of the router
• Features management port for a reliable networking
