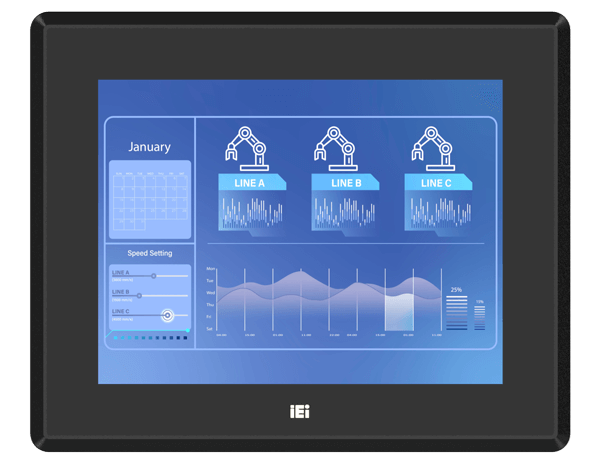

IEI 10.4” Fanless Panel PC with Intel Celeron Processor J6412 - PPC2-C10-EHL
The PPC2-C-EHL series heavy industrial panel PC is designed with rugged features to handle harsh work environments of any size. It is fanless, supports wide operating temperature from -10°C to 60°C, and provides features that resist vibration including 8GB on-board memory and NVMe storage. Intel Celeron J6412 CPU is selected as the heart of the panel PC to deliver excellent performance at ultra-low power. The equipped 10-point P-CAP touchscreen with anti-glare/anti-UV coating and scratch resistance provides IP65 protection and supports gloved/wet hand operation, making the panel PC an ideal solution for Industrial Internet o Things (IIoT) applications.
10.4" Fanless System Powered by Intel Quad-Core Processor Burst up to 2.6GHz
Powered by Intel Celeron J6412 processor (burst up to 2.6 GHz), the PPC2-C10-EHL can deliver high levels of CPU and graphics performance at low power. Compared to the previous generation (PPC-F-BT), the PPC2-C10-EHL offers 204% and 139% boost on for graphics and overall system performance, making it perfect for multitasking. With the feature of low power and excellent throughput, the 10.4" industrial panel PC can benefit IIoT edge computing by saving lots of energy while maintaining high computation.
Large and Reliable 8GB LPDDR4x Memory
Upgraded with 8GB dual-channel LPDDR4x soldered memory brings the benefits with faster memory speeds at 3200MT/s, lower voltage and reliable hardware. It reduces the power consumption of the memory system by 18~20% through cutting output driver power by 50%, from 1.2 V to 0.6 V. It takes lesser space on-chip for better system airflow and shorten the trace for better signal transmission.
Stability is a necessity in applications where vibration is present. The soldered-on-board type enables the industrial panel PC to deliver much more stable, solid operation compared to the socket-type memory for critical usage such as transportation, AMR and other mobile applications.
Effortless Upgrade
The PPC2-C10's mechanical cut-out size is designed to be 100% compatible with the previous PPC-F-BT panel PC, offering an economical and easy replacement or upgrade solution. With the identical mechanical design, customers can directly upgrade to the latest technology without any need to modify the existing machine cabinets.
Front IP65 Ingress Protection
Water and dust ingress protection is crucial for harsh environments such as food processing factory where sanitation and cleanliness are required or the daily cleaning of automation. The PPC2-C10 has a rugged aluminum die-casting front bezel framed with strong waterproof gasket seal on the back to protect against pressure water. IEI prudent hardware design provides the following protective features:
- Dust-tight protection for maximum performance against flying dust, dirt, debris and other particulates
- High degree of protection against water ingress at least 3 minutes of water spraying from a 6.3-millimeter nozzle from any direction 8 Truly flat surface makes it easy to maintain and clean, and prevents water or liquid droplets from penetrating through the opening, or clogging dust on edges.
Features
-
Intel Elkhart Lake Platform
-
Dual M.2 (M.2 B Key & M.2 M Key) support
-
Anti-glare and Anti-UV PCAP
-
Support Gloved and Wet Hand Operation
-
Newly Designed Panel Mount Kit
