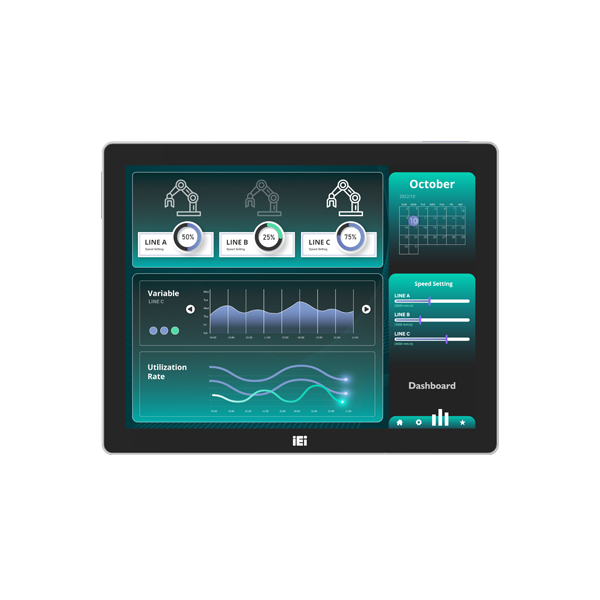

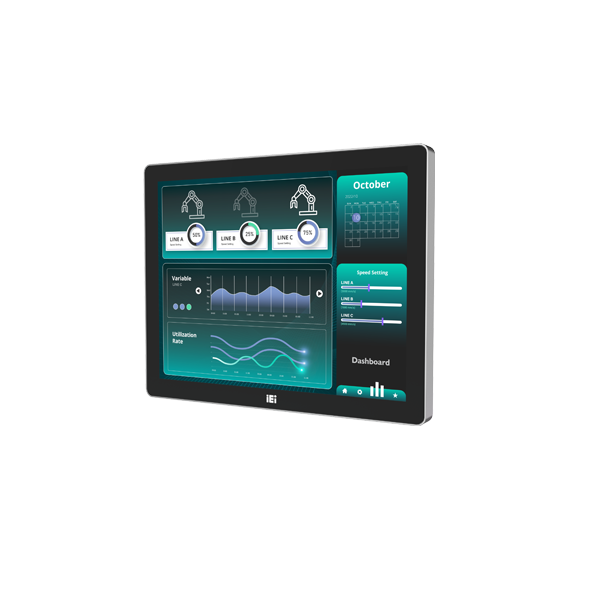

IEI 12” Fanless Panel PC with Intel Celeron Processor J6412 - AFL4-12-EHL
The AFL4-12-EHL is the 4th generation of IEI AFOLUX Panel PC. AFOLUX, standing for affordable luxury, is designed to provide versatile, cost-effective solutions for light industrial markets such as factory automation, retail, medical, digital signage and POS (point of sale). It is fanless with aluminum casing, looks stylish like a tablet, and is powered by Intel Celeron J6412 processor and 8GB LPDDR4x soldered memory to deliver excellent performance at ultra-low power. Built with optimized PCAP touchscreen, rich I/O and advanced wireless communication capability by the latest technology – Wi-Fi 6E and Bluetooth 5.2, the AFL4-12-EHL is ideal for IoT applications requiring high-speed connectivity, large embedded RAM, and low power consumption.
4K HDMI Expands Screen Real Estate
Featuring the latest Intel UHD Graphics with 16 EUs, the AFL4 panel PC can connect with a second display via the HDMI port to deliver powerful hard decoding capability for you, ensuring no delay on streaming 4K videos. The HDMI port is located on the side panel, enabling easy access and connection to the TV/monitor with HDMI on the side.
2.5GbE High-Bandwidth Low-Latency Data Transmission
The equipped two RJ45 LAN ports provides 2.5GbE connectivity that gives an immediate boost to overall network performance and improves the bandwidth required at large-scale workloads. The 2.5GbE port supports up to 2.5x faster speed than standard gigabit Ethernet, optimizing deployment of smart surveillance and home automation to deliver lightning-fast transmission speed between devices.
Dual M.2 M Key Supports High-performance NVMe SSDs
The AFL4 panel PC has two M.2 M key slots to support various expansion options, especially for storage requirement. An NVMe-based drive can write to disk up to 2x faster compared to a SATA SSD. By communicating directly with the CPU via the PCIe Gen3 bus, the NVMe drive offering up to 1GB/s (bidirectional) of throughput is a great solution to enable applications that require real-time data processing and storage reliability, such as surveillance and industrial automation.
Diversified I/O Connection
The AFL4-W10-EHL panel PC has multiple ports for peripheral connections, and even with an internal 1.2W speaker for audio output. It equips five USB ports supporting up to 10 Gbps transfer speed, and four serial ports to connect to legacy factory machinery and devices, allowing enterprises to bring intelligence to legacy equipment without having to replace them.
Touch-enabled BIOS
IEI's tBIOS allows users to navigate with finger on a touch-enabled monitor to make BIOS configuration easily. It helps eliminate excessive steps and unnecessary keyboard connection.
Features
-
Intel Elkhart Lake Platform
-
New narrow bezel design
-
Anti-glare and Anti-UV PCAP
-
Support Gloved and Wet Hand Operation
-
Support WiFi 6E and Bluetooth 5.2
