IEI ATX Motherboard Supports LGA1700 Intel 12th/13th/14th Generation Core I9/I7/I5/I3, Pentium And Celeron Processor, DDR4, Triple Independent Displays, 2.5GbE LAN, USB 3.2, SATA 6Gb/s and RoHS - IMBA-ADL-H610

New Advanced Industrial ATX Motherboard

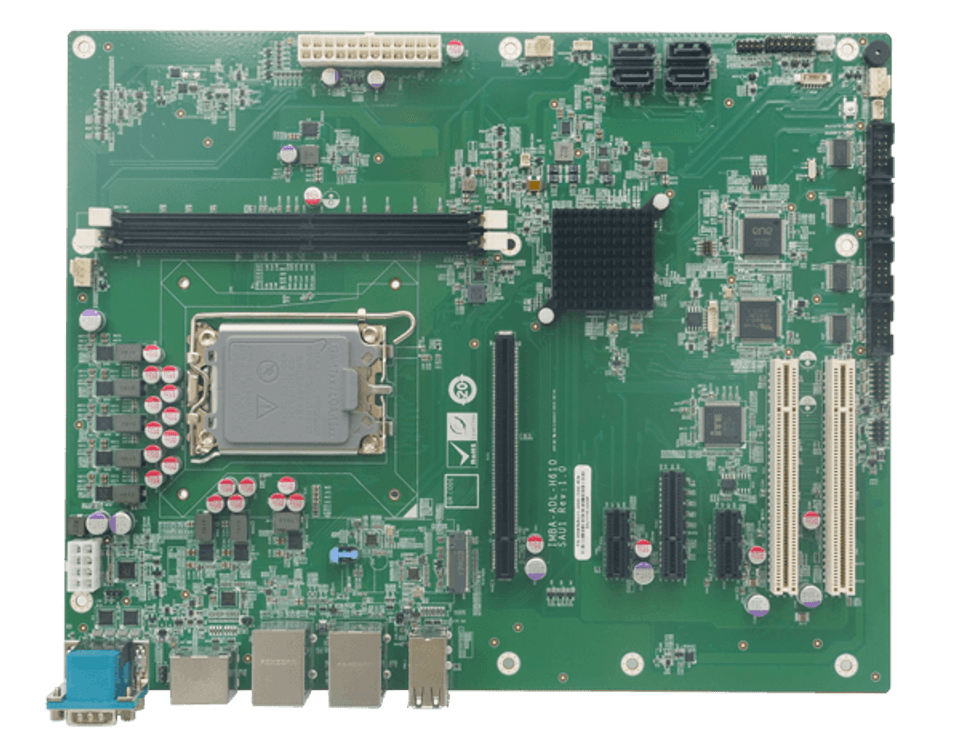

IMBA-ADL-H610 is IEI's cost-effective ATX industrial motherboard. It is able to support both 12th and 13th Gen Intel® Core processors and equipped one PCIe Gen4 x16 to deploy and run your AI projects in retail, transportation and surveillance efficiently. It drives a New Era in AIoT Solution.

Improved Efficiency and Performance with 12th/13th Gen Intel® Processors

IEI's IMBA-ADL-H610 motherboard supports both 12th and 13th Gen Intel Core processors, and the performance boosts up to 1.36x times faster in single-thread performance and up to 1.35x times faster in multi-thread performance than 10th Gen Intel Core Processors. The 12th Gen Intel Core platform supports up to 16 cores and 24 threads, enhanced AI, and Intel UHD Graphics 770 driven by Intel Xe Architecture. It also features innovative high-performance chip design, enhanced graphics performance, fast AI with hardware acceleration and real-time capabilities to help expand your IoT potential. With increased I/O capacity and the latest PCIe 4.0 support, these processors deliver the performance required to consolidate industrial multiple workloads.

Because of the above features, the IMBA-ADL-H610 is suitable for edge computing, industrial automation, medical equipment, machine vision, automated test equipment, smart factory and much more.

Triple Display with Stunning 4K Resolution

The Intel 12th generation processors is integrated with Intel UHD Graphics 770, which offers up to 32 EUs to drive a maximum resolution of 4kp60. Equipped with one HDMI 1.4 (up to 4096 x 2160@30Hz), one DP 1.4 (up to 4096 x 2160 @60Hz) and the option to use the iDPM 3040 slot (only for IEI eDP/LVDS/VGA module) to support triple independent displays, the ATX motherboard brings more possibilities to upgrade IoT devices at the edge.

Free to choose display connections with iDPM modules

More display I/Os are supported via IEI iDPM connector. The iDPM display converter boards allow theIMBA-ADL-H610 to meet customers’ diverse display interface requirements such as the legacy display port, VGA and LVDS, or eDP for TFT LCD connection.

Makes adequate AIoT application in practice

With powerful AI computing performance, graphics-rich performance of multi-display connection, and flexible expansion slots, the IMBA-ADL-H610 ATX motherboard makes adequate AIoT application in practice, such as industrial automation, smart factory, data analysis, video surveillance, computer vision, and medical imaging. All features plus its stability and reliability enable it an ideal platform for AIoT edge development.

Support PCIe Gen4, Also Has PCI to Work with Legacy Systems

The IMBA-ADL-H610 equips one PCIe Gen4 x16, one PCIe Gen3 x4 (open-end), two PCIe Gen3 x1, and two PCI expansion slots, providing not only high-level PCI Express connectivity, but also PCI to work with legacy systems. This ATX motherboard is AI edge ready, and supports IEI's AI accelerators, Mustang series. IEI Mustang AI accelerators can bring much larger and computationally-intensive neural networks to the edge, and they are ideal for deep learning inference computing to help you get faster, deeper insights for your customers and your business.

Dual USB 3.2 Gen 2 (10Gb/s)

Dual USB 3.2 Gen 2x1 (10 Gb/s) ports are integrated to support high density data transmission, the device can be connected in any way.

Four SATA 6Gb/s

Twice as fast data processing, it is capable of delivering lightning fast data transfer experience for edge AI data process applications.

Delivers Low-Latency 2.5G LAN Powered by Intel

The on-board Intel I225V 2.5GbE controller enable the IMBA-ADL-H610 to meet the bandwidth-intensive requirements such as large file transfers and high-resolution video streaming applications.

Features

• Support Intel H610/H610E chipset
• Support Intel I225V/I226V 2.5GbE Ethernet controller
• Support triple independent display via HDMI, DP and iDPM
• Support one PCIe x16, one PCIe x4, two PCIe x1, two PCI expansions
• Support two USB 3.2 Gen 2, two USB 3.2 Gen 1, six USB 2.0, with up to 10Gb/s transfer speed
• Support two RS-232/422/485 , four RS-232 and four SATA ports

DATASHEET
