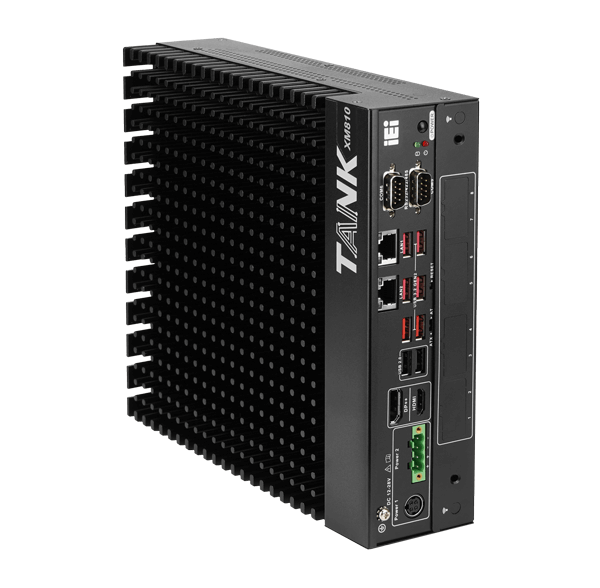

IEI High-Performance 10 th / 11 th Generation Intel Core Processor Fanless Embedded Computer - TANK-XM810

Modular Edge AI Inference System

iEi has engineered the TANK-XM810 with the latest technologies to deliver optimized and reliable processing performance at the rugged edge. This product features 11th/10th generation Intel Core processors and comes with multiple I/O combinations and a modular expansion solution. Expansion is supported by iEi's unique eChassis boxes and eBP backplanes.

The TANK-XM810 can support up to 65W processors and can operate in temperatures ranging from -20°C to 60°C. It is designed for use in harsh environments like digital surveillance, transportation system, machine vision and advanced manufacturing.

10th Gen Intel Core Outstanding Computing Power

8 Cores, 16 Threads, Up to 65W CPU

The TANK-XM810 series is powered by the 10th generation Intel Core i7/i5/i3 processors. With up to 8-core architecture and high-speed DDR4-2933 memory support, it provides low-latency edge responsiveness for data-driven industrial AI and machine vision applications.

Moreover, the 10th Gen Core i7 CPU brings 50% better multi-tasking performance for compute-intensive application than 9th Gen CPU. DDR4 2933 MHz memory further increases speed by 10%. With increased I/O capacity and the outstanding computing power, the TANK-XM810 delivers the performance required to consolidate industrial multiple workloads.

Flexible Expansion with eChassis

The TANK-XM810 supports the unique eChassis modules that enable performance acceleration through GPUs, accelerators and other add-on cards. Furthermore, comprehensive modularized options and the ease of configuration effectively reduce lead time for customers' diverse requirements.

Four Steps to Configure Your Edge AI Inference System

The TANK-XM810 series of embedded computers from iEi provides great scalability and flexibility, thanks to its unique eChassis modules. This makes it easy for system integrators to configure a system that meets specific user requirements.

Flexible Expansion via PCIe/PCI slot

For performance upgradability and flexibility, the TANK-XM810 supports eChassis and eBP modules to add edge inference capabilities. It also provides up to 7 system configuration options. Users can select a specific package that provides extra PCIe expansion slots for add-on cards such as frame grabber cards, accelerator cards, I/O cards, motion control cards, and even GPU accelerators for machine learning and AI workloads.

GPU Expansion Box

The GPU eChassis, TXC-XM81-G1 and TXC-XM81-G2, are the scalable expansion chassis designed for adding graphics cards to enhance artificial intelligence applications. They can support up to total 600 W and 339.8 mm in a full-length, full-height form factor. Other PCIe add-on cards like high speed I/O cards, data collection cards, frame grabber cards and motion cards are also supported to expand functionality.

*Please choose the corresponding eBPs, TXCBP-XM81-4A for TXC-XM81-G1 and TXCBP-XM81-G2-PW for TXC-XM81-G2.

Dual-Power Input Enables Performance Upgrade

The TANK-XM810 provides a dual-power input solution for stably and efficiently powering the add-on cards requiring high power load. The IDD-X1228150 power board offers additional power for GPU cards and accelerators that require more than 75W.

• 12-28V DC for host system
• 12V DC or 16-28V DC for performance acceleration cards
