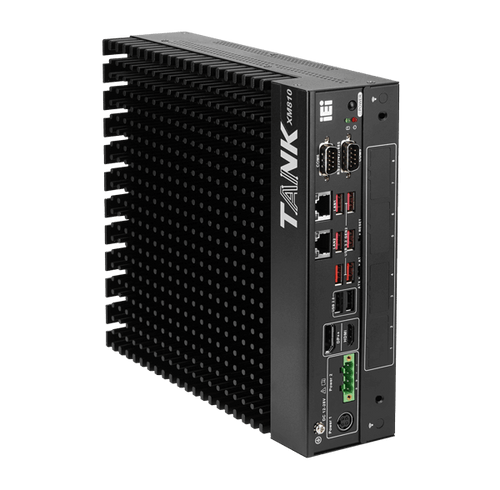

IEI TANK-XM811 is a rugged edge AI inference system that supports up to 65W TDP processors. It is integrated with the 12th Gen Intel Core desktop CPU and Intel® R680E chipset. This solution is up to 36%, 35%, and 94% faster for single-thread performance, multi-thread performance, and graphics performance than previous generations.

In addition, the integrated GPU, Intel UHD Graphics 770, can offer up to 32 graphics execution units (EUs) and a clock speed of up to 1.55 GHz (depending on the CPU model). With the improved graphics performance and GPU image classification inference performance, the TANK-XM811 can support better AI workload parallelization and image classification inference.

Flexible Expansion with eChassis

The TANK-XM811 supports the unique eChassis modules that enable performance acceleration through GPUs, accelerators and other add-on cards. Furthermore, comprehensive modularized options and the ease of configuration effectively reduce lead times for customers' diverse requirements.

Four Steps to Configure Your Edge AI Inference System

The TANK-XM811 series of embedded computers from IEI provides great scalability and flexibility, thanks to its unique eChassis modules. This makes it easy for system integrators to configure a system that meets specific user requirements.

Flexible Expansion via PCIe/PCI Slot

For performance upgradability and flexibility, the TANK-XM811 supports eChassis and eBP modules to add edge inference capabilities. It also provides up to 7 system configuration options. Users can select a specific package that provides extra PCIe expansion slots for add-on cards such as frame grabber cards, accelerator cards, I/O cards, motion control cards, and even GPU accelerators for machine learning and AI workloads.

GPU Expansion Box

The GPU eChassis, TXC-XM81-G1 and TXC-XM81-G2, are the scalable graphics card expansion chassis designed for artificial intelligence applications. They can support up to total 380 W and 339.8 mm in a full-length, full-height form factor. Other PCIe add-on cards like high speed I/O cards, data collection cards, frame grabber cards and motion cards are also supported to expand functionality.

*Please choose the corresponding eBPs, TXCBP-XM81-4A for TXC-XM81-G1 and TXCBP-XM81-G2-PW for TXC-XM81-G2.

Dual-Power Input for Performance Acceleration

The TANK-XM811 provides a dual-power input solution for stably and efficiently powering the high power loading add-on cards. The IDD-X1228150 power board provides additional power for GPU cards and accelerators that require more than 75W.

• 12-28V DC for host system
• 12V DC or 16-28V DC for performance acceleration cards

Industrial-grade Hardened Hardware Design with 12V~28V DC Wide-range Power Input

Ruggedized hardware architecture safeguards the small factor computer in harsh, remote and dynamic environments.
