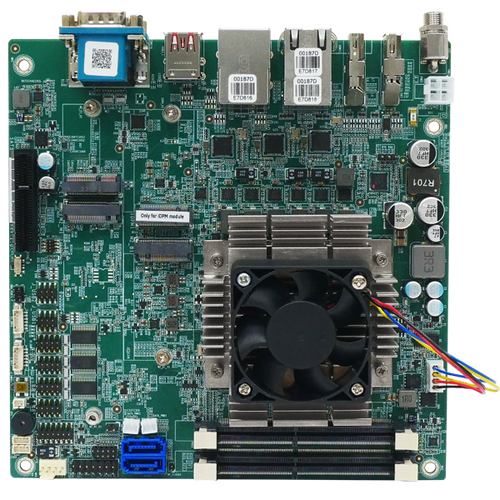

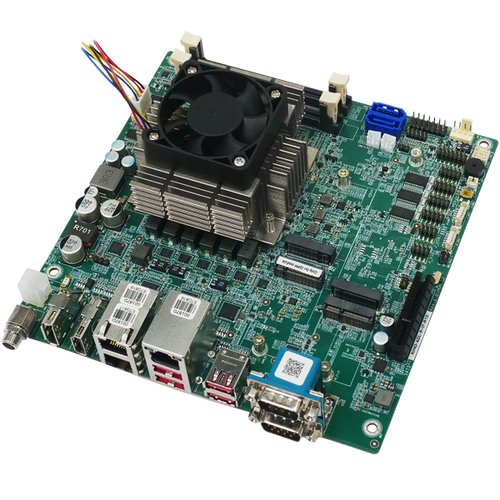

IEI Mini-ITX SBC Support Intel Alder Lake-PS Core i7/i5/i3 and Celeron Processor, DDR4 SO-DIMM, Riple Display with DP, HDMI and iDPM Slots, SATA, Dual Intel 2.5GbE, USB3.2, M.2, RoHS - KINO-ADLPS
The KINO-ADLPS, a powerful Mini-ITX SBC, is designed for high performance. It supports 12th Gen. Intel Core i7/i5/i3 and Celeron processors, providing exceptional processing capabilities. With different options, this SBC offers versatility to suit various computing needs.
The KINO-ADLPS supports three independent displays, allowing for immersive multi-screen configurations that boost productivity and visual quality. Whether you are building a compact gaming rig, a media center, KIOSK, or a various workstation, the KINO-ADLPS offers the flexibility and power you need.
Upgrade your computing capabilities with the KINO-ADLPS and experience seamless performance in a compact form factor.
High-performance 12/13th Gen Intel Core Mobile Processors
The KINO-ADLPS Series uses 12/13th Gen Intel Core Mobile Processors to provide powerful performance with low power consumption. This series utilizes a Performance Hybrid Architecture, combining Performance-cores with Efficient-cores to boost multi-tasking efficiency. The use of sockets in mobile processors is a new approach, allowing for system customization and upgrades. With advanced thermal solutions and intelligent power management, the KINO-ADLPS Series operates efficiently without overheating. It delivers exceptional performance for complex tasks. Experience unmatched performance and reliability with optimized multi-core processing and low power consumption on mobile devices.
Triple Independent Displays with up to 4k Resolution
The KINO-ADLPS integrates Intel Iris Xe Graphics, the designated graphics solution for 12th Gen Intel Core processors in the Core i5 and i7 lineup, while Intel UHD Graphics is utilized by Celeron and Core i3 processors. With its triple independent displays, including DP, HDMI, and iDPM, the KINO-ADLPS becomes versatile for application in diverse IoT scenarios. It can be used in any scenario with multiple displays.
PCIe x4 Slot Allows Extensive I/O and Function Expansion
The PCIe x4 slot offers significant advantages for extensive I/O and function expansion. With its high-speed four-lane interface, it provides a flexible solution for a wide range of peripherals, including sensors, actuators, and data acquisition cards. This enables larger-scale system integration and more complex automation control.
Dual Low-Latency 2.5G LAN Powered by Intel
2.5 GbE allows for different connection speeds ranging from 100 Mbps to 2.5 Gbps on Cat 6 and Cat 5e cables, enabling users to fully utilize high-performance network solutions without costly cable upgrades.
M.2 Expansion for Wi-Fi and NVMe Storage
M.2 2230 A Key for Wi-Fi/Bluetooth
The M.2 2230 A key slot carrying with PCIe Gen3 x1 and USB 2.0 signals allows it to adopt the latest Wi-Fi 6E technology. Wi-Fi 6E enhances low latency and supports service levels that are equivalent to 5G networks
M.2 2280 M Key for PCIe
The M.2 2280 M key slot for PCIe offers advantages including high-speed data transfer, increased storage capacity, compact size, improved system performance, and compatibility with the efficient NVMe protocol.
Features
-
Mini-ITX SBC support Intel Alder Lake-PS Core i7/i5/i3 and Celeron processor (socket)
-
Support two 3200MHz DDR4 SO-DIMM
-

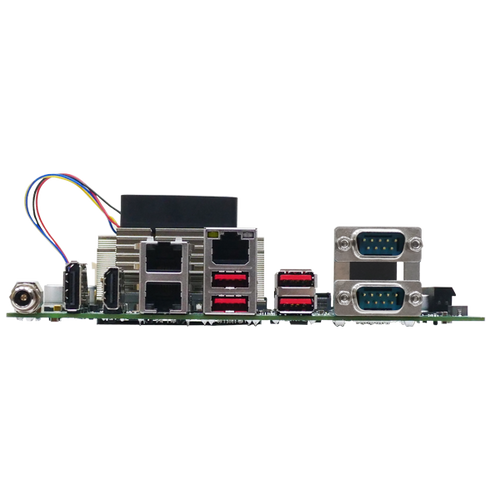

Triple independent display via HDMI, DP, iDPM
-
Support Dual Intel I225V/I226V 2.5GbE controller
-
Support PCIe Gen3 x4, M.2 M key and M.2 A key expansion
