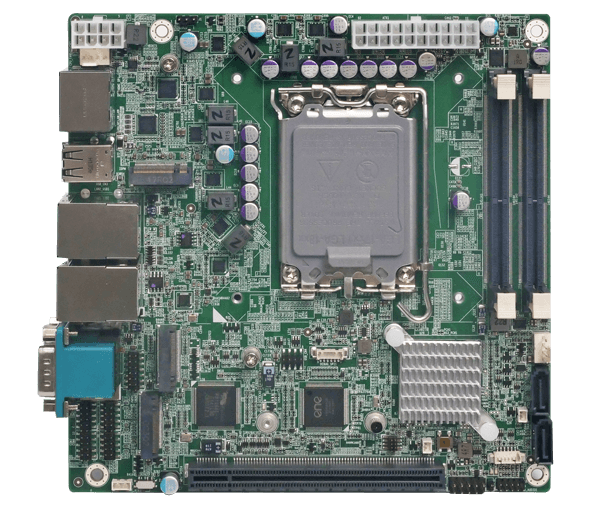

IEI Mini-ITX SBC Supports LGA1700 Intel 12th/13th/14th Generation Core I9/I7/I5/I3, Pentium and Celeron Processor, DDR4, Triple Independent Displays, Dual 2.5GbE LAN, USB 3.2, SATA 6Gb/s and RoHS - KINO-ADL-H610
The cost-friendly motherboard from IEI, KINO-ADL-H610, has been expertly engineered to fully unleash the potential of 13th and 12th Generation Intel processors on socket LGA 1700. It comes in a compact form factor, condensing powerful computing capabilities and AI acceleration for space-constrained industrial applications. These applications include uses such as autonomous mobile robots (AMR) and optical inspection on the factory floor, simplifying the adoption process for customers.
Breakthrough Performance Achieved by 13th Gen Intel Core Desktop Processors
Supporting both 12th and 13th Generation Intel Core i9/i7/i5/i3/Pentium/Celeron Processors up to 65W on Intel's performance hybrid architecture, the KINO-ADL delivers the next generation of breakthrough core performance for heavy IoT workload consolidations. With up to 32 graphics execution units, it allows for a high degree of parallelization for AI workloads, complemented by built-in AI acceleration from Intel® Deep Learning Boost (Intel DL Boost) and the Intel® Distribution of OpenVINO toolkit.
Triple Independent Displays with up to 4K Resolution
longside IEI's unique iDPM slot design, this gives customers not only a choice of up to three display options, but also perfect for creating slimline Panel PC solutions. Furthermore, enhanced Intel UHD Graphics driven by Xe architecture deliver vibrant, high-quality visual support for 4K displays.
Free to Choose Display Interfaces with iDPM Modules
IEI's iDPM connector supports versatile display outputs. The iDPM display converter boards enable the KINO-ADL to meet customers' diverse display interface requirements, including legacy display ports, VGA and LVDS, or eDP for TFT LCD connections.
Native 10Gbps USB 3.1 Gen 2 Type-A Support
With dual backward-compatible USB 3.1 Gen 2 Type-A ports, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.
Intel 2.5Gb Ethernet
Intel 2.5Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput, resulting in faster and smoother data transfers.
Features
-
Support Intel H610/H610E chipset
-
Support two Intel I225V/I226V 2.5GbE Ethernet controllers
-
Support triple independent display via HDMI, DP and iDPM
-
Support one PCIe x16, one M.2 A Key, one M.2 M Key expansions
-
Support two USB 3.2 Gen 2, two USB 3.2 Gen 1, four USB 2.0, with up to 10Gb/s transfer speed
-
Support two RS-232/422/485, four RS-232 and two SATA ports
