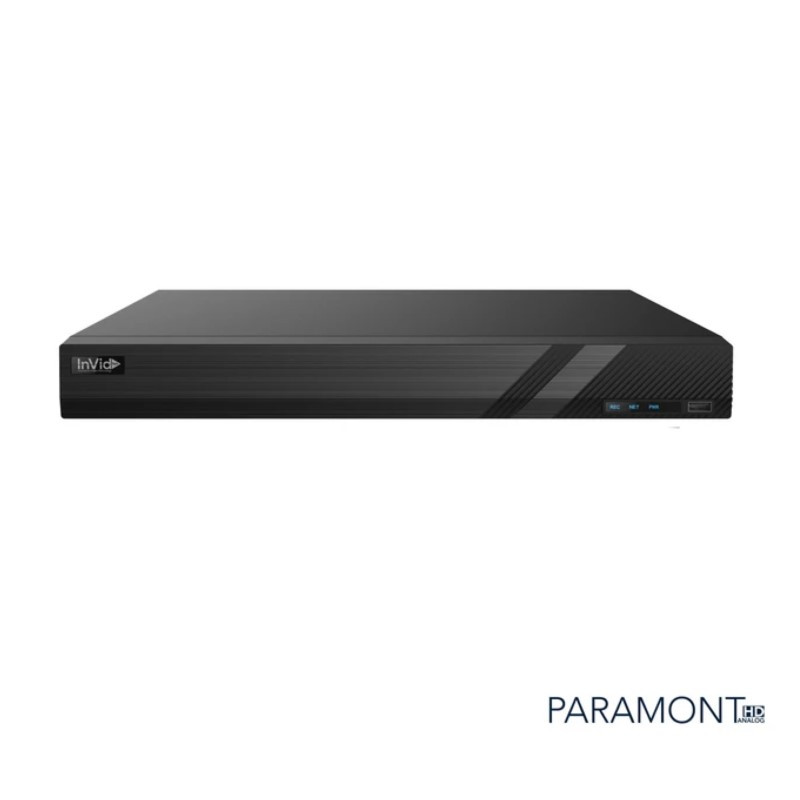

PD2B-16
16 Ch TVI/AHD/CVI/Analog/IP Universal Port Recorder (8 MP),
with 8 Bonus IP Ch (8 MP), Up to 24 Cameras Total, 2 HD Bay
Core Features:
- 16 Channel Universal Port DVR (TVI/AHD/CVI/Analog/IP)
- TVI/AHD/CVI: 8MP Analog: 960h, IP: 8MP
- 8 Bonus IP Channels – Up to 8 Megapixel
- Total Max IP Input: 16 (Including Bonus IPC)
- H.265 Video Compression
- True P2P Connectivity with QR Code Connect
- HDMI up to 4K
- Simultaneous HDMI/VGA up to 1080p Resolution
- CVBS Main or Spot Monitor
- Supports up to 16 Channel Simultaneous Playback
- Multiple video search options including Thumbnail Search for quick retrieval of footage. Smart Search (Bonus IPC channels only)
- Watermarking
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS) to manage multiple units & sites from a single platform
- Free MAC client software to easily manage your system from your Apple computer
| Weight | 10 lbs |
|---|---|
| Dimensions | 14.96 × 10.55 × 52 in |
| Brand | InVid |
System PD2B-16
OS Embedded Linux
Video
Analog Video Input
BNC × 16
BNC interface (1.0Vp-p; 75Ω)
TVI/AHD/CVI: 4k@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/
WD1@30fps (live)
IP Video Input 8CH (up to 16CH)
Up to 8MP@30fps
Total Input 24CH
Output
HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1024 × 768,
VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768,
BNC × 1 : CVBS ( used as the main or spot output )
Compression H.264/H.265
Audio
Input RCA × 8
Output RCA × 1 (Linear,600Ω)
Two-way audio Take up channel one audio input
Compression G.711 (UVA)
Record
Resolution 4K/4K Lite/5MP/5MP Lite/4MP/4MP Lite/3MP/1080P/720P/WD1/D1
Frame Rate
Analog Channel:
4K@6fps/7fps (PAL/NTSC)
4K Lite@12fps/15fps (PAL/NTSC)
5MP@12fps (PAL / NTSC)
5MP Lite@20fps (PAL / NTSC)
4MP/3MP@12fps(PAL) / 15fps (PAL/NTSC)
4MP Lite/1080P/720P/WD1/D1@25fps/30fps (PAL/ NTSC)
IP Channel: 25fps/30fps (PAL/ NTSC)
Bit Rate 32Kbps ~ 5Mbps
Mode Manual, timer, motion, smart event
Playback
Playback 16 CH
Search Time slice / time / event / tag search
Smart Search Highlight colors to display the camera record in a certain period
of time, different colors refer to different record events
Function Play, pause, FF, FB, digital zoom, etc.
Alarm
Mode Manual, motion, exception, smart event
Input 16 CH
Output 4 CH
Network
Interface RJ45 1000Mbps × 1
Protocol TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
Incoming Bandwidth 32Mbps (Max.64Mbps)
Outgoing Bandwidth 96Mbps
Mobile Device
OS iOS, Andriod
Storage
HDD SATA x 2, up to 14TB per HDD; E-SATA x1 (Max 14TB, Record Only)
Backup
Local Backup USB, USB to HDD (Max 1TB)
Network Backup Yes
Port
RS485 YES (half-duplex), connect to PTZ
USB USB 2.0 × 2
Remote Controller Included
Other
Power Supply DC12V / 4A
Consumption ≤ 30W ( without HDD )
Dimensions ( mm ) 380 × 268 × 52 ( W × D × H )
Work Environment 14 - 122°F (-10 ~ 50 ℃), 10% ~90% humidity
PD2B-16
16 Ch TVI/AHD/CVI/Analog/IP Universal Port Recorder (8 MP),
with 8 Bonus IP Ch (8 MP), Up to 24 Cameras Total, 2 HD Bay
Features
InVid Tech, reserves the right to make changes to improve our products at any time without notice; we are not responsible for misprints.
