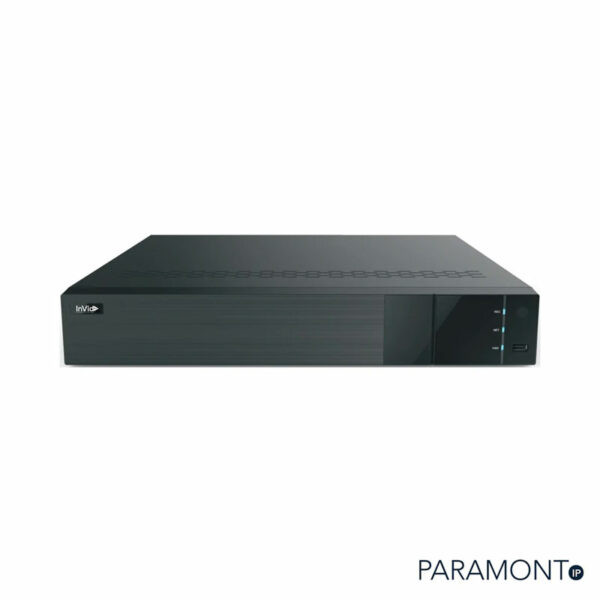

InVid PN3A-16X16F, 32 Ch NVR with 16 Plug & Play Ports, 192 Mbps, (2) NIC Cards, 4 HD Bays, 4K, 8TB

Core Features:

• 16 Plug & Play Ports for easy camera setup PoE
  (Power Over Ethernet) available on all ports
• 8 TB Storage
• Up to 12 Megapixel Resolution Recording (Non-AI Mode)
• (2) NIC Cards: Connect Cameras 1-16 via PnP into unit. Connect
  cameras 17-32 via switch behind closed network.
• True Facial Recognition Capable with Compatible Camera
• 192 Mbps Bit Rate Input
• Supports up to 16 channel simultaneous playback
• Works with ONVIF or other supported IP cameras
• Local HDMI main monitor output with 4K Support
• Local HDMI/VGA main monitor output up to 1080p
• True P2P Connectivity with QR Code Connect
• Multiple video search options including Thumbnail Search
  for quick retrieval of footage.
• H.265S/H.265+/H.265/H.264 video compression
• Free iOS & Android Apps for Smart Phones & Tablets
• Free Central Management Software (CMS) to manage multiple
  units & sites from a single platform
• Free MAC client software to easily manage your system
  from your Apple computer

GENERAL INFO:

• Model: PN3A-16X16F/8TB

SYSTEM:

• OS Embedded Linux

VIDEO:

• Compression:
  • H.265S/H.265+/H.265/H.264
• IP Video Input:
  • 32 Ch IPC Input
• Resolution:
  • 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/
  • 720P/960H/D1/CIF
• Network Bandwidth:
  • 192Mbps/192Mbps (incoming/outgoing)
• Output:
  • HDMI1: 3840×2160/1920 × 1080 / 1280 × 1024 / 1024 × 768
  • HDMI2: 1920 × 1080 / 1280 × 1024 / 1024 × 768
  • VGA ×1: 1920 × 1080 / 1280 × 1024 / 1024 × 768
  • VGA and HDMI1 output the same video source

AUDIO:

• Network Input: 32 Ch IPC Audio Input
• 2-Way Audio: RCA x 1
• Local Output: RCA x 1
• Compression: G.711(U/A)

RECORD:

• Record Stream:
  • Dual Stream Recording
• Resolution:
  • 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P
    /960H/D1/CIF
• Frame Rate NTSC: 30fps; PAL: 25fps
