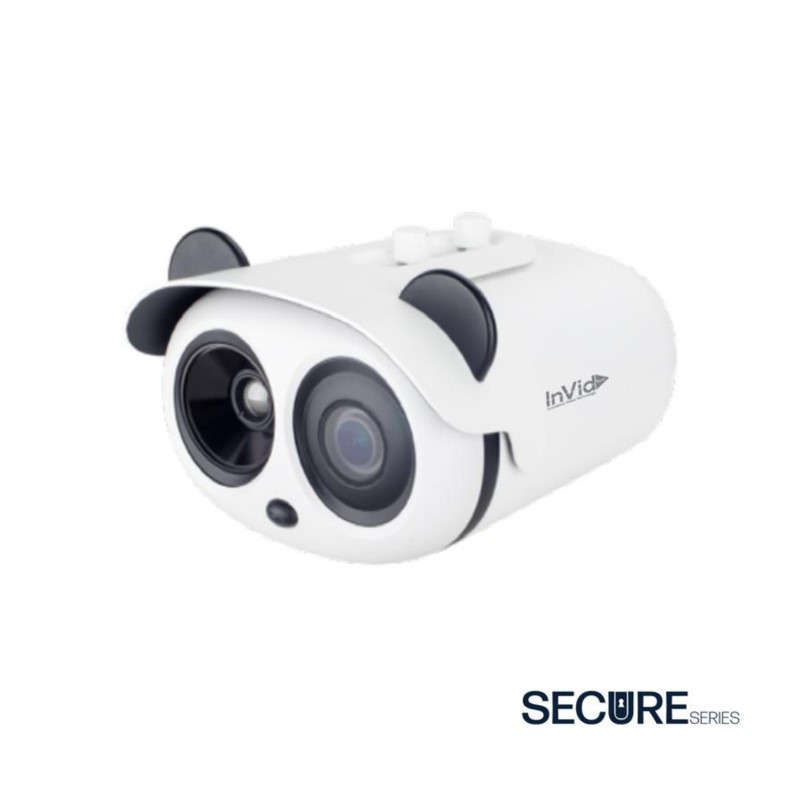

Body Temperature Detection Network Camera

Core Features:

• On-board temp-detection algorithm
• One IP address two channels
• Standard Image: 2 Megapixel (1920 x 1080) Resolution Thermal Image: Effective pixels 400×300
• Sensitivity 40mK
• Thermal: 8mm Fixed lens, Visible: 2.7-12mm motorized lens
• Accuracy within 0.54°F (0.3°C)
• Body detection
• Response Time 30ms
• 17 color control

Thermal Camera SEC-BODYTEMPCAM2
Detector Type Uncooled IRFPA Microbolometer
Effective Pixels 400(H) ×300(V)
Pixel Size 17um
Thermal Sensitivity
(NETD) ≤40mK @F1.0, 300K
Spectral Range 8~14um
Image Setting Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Contrast/ ROI
Color Palettes Black-Heat/White-Heat/Rainbow/Iron-Red up to 17
modes
Thermal Lens
Lens Type Fixed
Focus Control Manual Focus
Focal Length 8mm
F No. F1.0
Angle of View H: 46°, V: 35°
Visible Camera
Image Sensor 1/2.8" Sony CMOS
Effective Resolution 1920(H)×1080(V)
Shutter Speed 1/5 ~ 1/20,000s
Wide Dynamic Range True WDR 120dB
Min. Illumination Color: 0.1Lux @(F1.2, AGC ON)
B/W: 0.01Lux @(F1.2, AGC ON)
S/N Ratio More than 55dB
Focal Length 2.7 ~ 12mm
Max Aperture F1.6~ F2.9
Angle of View H: 89° ~ 33°, V: 48° ~ 18°
Focus Control Motorized
Video and Audio
Frame Rate
Main Stream:
Visible: 1920×1080/1280×720 @25/30fps Thermal: D1
@25/30fps
Sub Stream:
Visible: D1/VGA/640×360/CIF/QVGA @25/30fps Thermal:
CIF @25/30fps
Bit Rate Control CBR/VBR
Bit Rate
Main Stream:
Thermal: 100Kbps~6Mbps, Visible: 100Kbps~12Mbps
Sub Stream:
Thermal: 10Kbps~1.5Mbps, Visible: 10Kbps~6Mbps
Region of Interest Off / On (8 Zone, Rectangle)
Digital Zoom 16x
Mirror Support
Defog Support
Motion Detection Support
Privacy Masking Off / On (4 Area, Rectangle)
DVE Image Enhance Support
Audio Compression G.711, RAW_PCM
Intelligence
Intelligent Functions Motion detection, Disk alarm, I/O alarm, Temperature alarm
DISCLAIMER: InVid Tech products are not medical devices and cannot diagnose coronavirus infection. When configured correctly, the InVid Tech products discussed here can identify individuals showing higher than average temperature relative to a
sample population. Only a licensed medical professional can determine if a “hot” individual is experiencing an abnormal medical condition. InVid Tech, reserves the right to make changes to improve our products at any time without notice; we are
not responsible for misprints.
Temperature Detection
Temperature Detection Body temperature monitoring
Temperature Alarm Over temperature alarm
Accuracy
± 0.54°F ( 0.3 ℃) (Emission rate, distance, ambient temperature, etc.) with blackbody ,
Environment temperature: 41°F ~ 104°F (5°C ~ 40 °C)
Detection Distance: 9-16ft (3~5m) (13ft recommended)
Working Environment: Avoid the interference of wind, sunshine, high temperature and reflective objects, indoor only
Response Time ≤30ms
Temperature Range 32°F ~ 140°F (0 °C ~ 60 °C)
Network
Ethernet RJ-45 (10/100Base-T)
Protocols IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS,
PPPOE, SMTP, SIP ,802.1x
Interoperability ONVIF, CGI, SDK
Max. User Access 10 Users
Edge Storage FTP
Local PC for instant recording
Web Language English, Chinese, Polish, Italian, Portuguese, Spanish.
Russian, French, Czech, Hungarian
Interface
Ethernet 1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio Interface 1ch Audio In,1ch Audio Out
Alarm 2ch Alarm In,2ch Alarm Out
RS485 Support
Reset Button Support (Built-in)
General
Power Supply DC12V/POE (IEEE 802.3af)
Power Consumption Max 10W
Operating Temperature -22°F~140°F (-30°C~60°C)
Storage Conditions 0~ 90% RH
Certifications CE /FCC
Ingress Protection IP66
Casing Metal
Dimensions 8.34” x 7.16” x 5.35” (212×182×136mm)
Net Weight 4.63 lb (2.1 kg)
Mounting Options Ceiling or Wall Brackets Optional & SEC-BODYTEMPTRI
