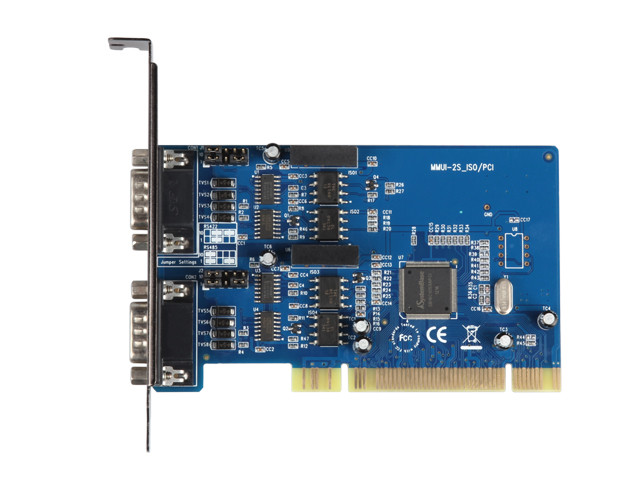

IO Crest 2 ports RS485/422 PCI Card - IO-PIO4285-2S
SB16C1053 series is based on a double of PCI target interface controller of SB16C1053APCI.SB16C1053 series hasve a parallel port and I/O bus to realize the transformation of PCI to serial port and the parallel port.
SB16C1053PCI can support as many as six serial port extension, provide RS422/485 to switch function and global interrupt built-in function to allow the serial port in serial communication more convenient to manage the driver program level.
Product description
- Conforms to the PCI specification, supports 32 bit PCI bus.
- Support PCI I/Q sharing
- FIFO size:256- Byte
- Plug and play, automatic distribution of IRQ and I/O address.
- Bits per second: 75-128000
- Data bits: 5, 6, 7, 8
- Parity: even, odd, no, mark, space
- Stop bit: 1, 1.5, 2
- Flow control: Xon/Xoff, hardware, no
- Compliance RoHSstandard.
- Using 16C1053 SystemBase control chip
Serial signal - 422 definitions: 1-3, 2-4, 3-1, 4-2
- 485 definition: 1-1, 2-2
- Operating temperature: -45 to +85;
- Working humidity: 20% RH to 85% RH;
- Storage temperature: 10 degrees C ~ 90 degrees C;
- Support system: 2000/2003/XP/vista/7/2008/8/8.1 linux2.4, Linux WINDOWS 2.6 operating system.
Package details
- 1xPCI serial card
- 1xUser Manual
- 1xCD driver
