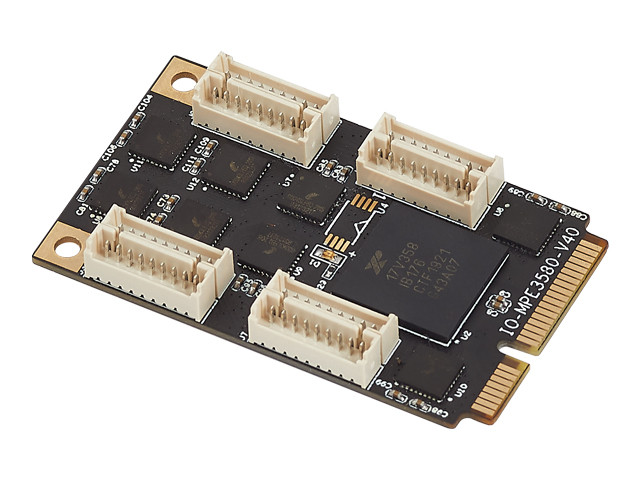

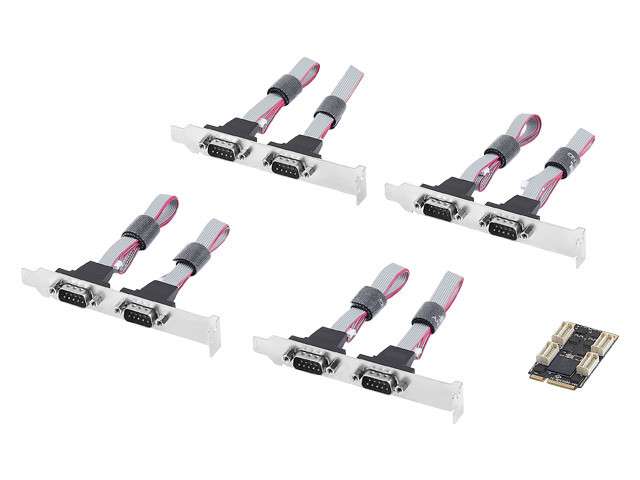

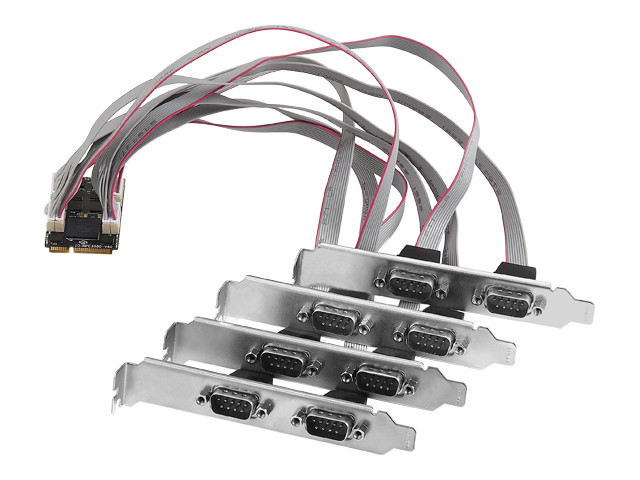

IO Crest MINI PCI-E To 8-Port RS232 Card - IO-MPE358-8S
PCIe 2.0 Gen 1 compliant,x1 Link, dual simplex, 2.5 Gbps in each direction,15 KV ESD protection for all serial ports,Sleep mode with wake-up Indicator.
Features
- PCIe 2.0 Gen 1 compliant
- x1 Link, dual simplex, 2.5 Gbps in each direction
- 15 KV ESD protection for all serial ports
- Sleep mode with wake-up Indicator
- Transmission media: twisted-pair cable or shielded cable
- Direction control: Adopt the technology which automatically controls the data-flow directionãautomatically distinguish and control the data-transmission direction;
- Eight independent UART channels controlled with
- 16550 compatible register Set
- 256-byte TX and RX FIFOs
- Programmable TX and RX Trigger Levels
- TX/RX FIFO Level Counters
- Fractional baud rate generator
- Automatic RTS/CTS or DTR/DSR hardware flow control with programmable hysteresis
- Automatic Xon/Xoff software flow control
- UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none
- Flow control none,hardware and xon/xoff
- Extended operating temperature range; -40 to 85â°C
System Requirements
- Windows OS
- Linux 2.6.27, 2.6.31, 2.6.32, 3.x.x and newer
- A available mini PCI Express slot
Applications
- Next generation Point-of-Sale Systems
- Remote Access Servers
- Storage Network Management
- Factory Automation and Process Control
