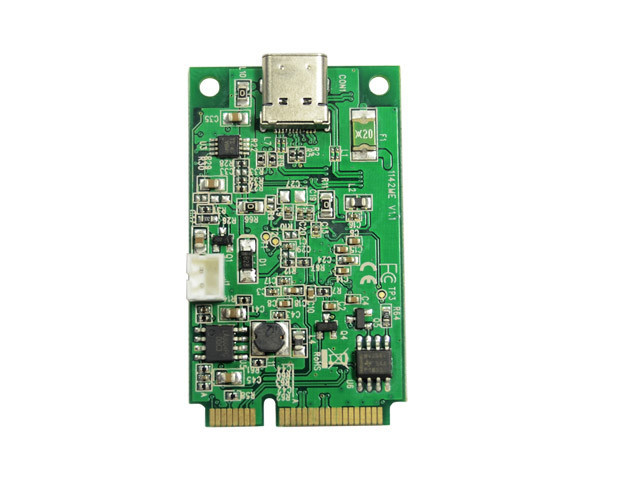

IO Crest Mini PCIe to 1 Port USB3.1 USB-C Host Controller Card - IO-MPU31-1C
Mini PCI Express Base Specification, Compliant with Universal Serial Bus 3.1 specification Gen2, Supports simultaneous operation of multiple USB 3.1, 3.0, USB 2.0 and USB 1.1 devices, Supports USB data transfer rate of 10G/5G/480/12/1.5 Mbps.
Features
- Mini PCI Express Base Specification
- Compliant with Universal Serial Bus 3.1 specification Gen2
- Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.1
- Compliant with USB Attached SCSI Protocol Revision 1.0
- Supports simultaneous operation of multiple USB 3.1, 3.0, USB 2.0 and USB 1.1 devices
- Supports USB data transfer rate of 10G/5G/480/12/1.5 Mbps
- Built-in over current protection on USB port
- USB port supplies maximum +5VDC / 3A power output to USB device
- Support device remote wakeup function from USB keyboard or mouse
- Hot-swapping feature allows connect/disconnect device without powering down the system
- Power Input: 2-pin Cable Type Power Connector
- Support Control, Bulk, Stream, Interrupt, Isochronous transfer type
- Operation Temperature ï¼0 to 60°C (32 to 140°F)
- Storage Temperatureï¼-20 to 70°C (-4 to 158°F)
- Operation Humidityï¼5 to 95% RH
System Requirements
- Windows 7 (X86/X64)
- Windows 8.x / 10 (X86/X64) (Windows in-box driver)
- Support Linux 2.6.31 or later (Linux OS already implemented USB3.0 driver)
Package Contents
- 1 × Mini PCI-e USB 3.1 USB-C Card
- 1 × User Manual
- 1 × Driver CD
- 1 × 2-Pin Molex Power cable
